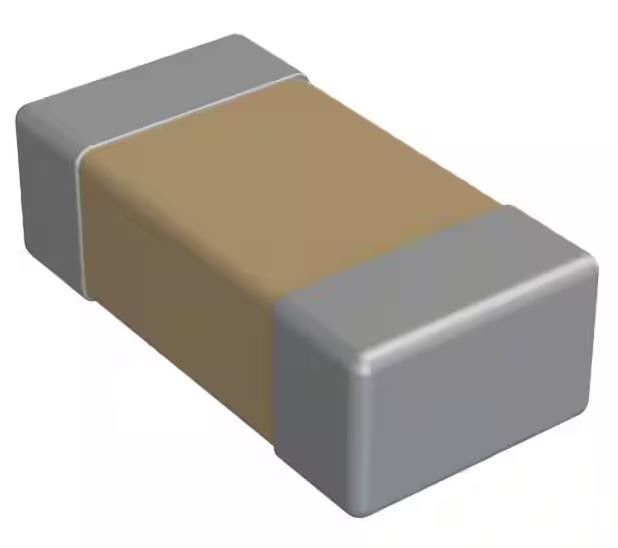

C0603C272J5GACTU 2700 pF 50V Ceramic Capacitor C0G, NP0 0603
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | C0603C272J5GACTU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Low ESL | Capacitance: | 2700 PF |
|---|---|---|---|
| Tolerance: | ±5% | Voltage - Rated: | 50V |
| Temperature Coefficient: | C0G, NP0 | Operating Temperature: | -55°C ~ 125°C |
| Applications: | General Purpose | Thickness (Max): | 0.034" (0.87mm) |
| High Light: | C0603C272J5GACTU,2700 pF 50V Ceramic Capacitor |
||
Product Description
C0603C272J5GACTU 2700 pF ±5% 50V Ceramic Capacitor C0G, NP0 0603
3 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
Specifications of C0603C272J5GACTU
| TYPE | DESCRIPTION |
| Category | Ceramic Capacitors |
| Mfr | KEMET |
| Series | SMD Comm C0G |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Capacitance | 2700 pF |
| Tolerance | ±5% |
| Voltage - Rated | 50V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.034" (0.87mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | C0603C |
Features of C0603C272J5GACTU
• −55°C to +125°C operating temperature range
• Lead (Pb)-free, RoHS, and REACH compliant
• EIA 0201, 0402, 0603, 0805, 1206, 1210, 1808, 1812, 1825,2220, and 2225 case sizes
• DC voltage ratings of 10 V, 16 V, 25 V, 50 V, 100 V, 200 V, and 250 V
• Capacitance offerings ranging from 0.5 pF up to 0.47 μF
• Available capacitance tolerances of ±0.10 pF, ±0.25 pF,±0.5 pF, ±1%, ±2%, ±5%, ±10%, and ±20%
• No piezoelectric noise
• Extremely low ESR and ESL
• High thermal stability
• High ripple current capability
Descriptions of C0603C272J5GACTU
KEMET’s C0G dielectric features a 125°C maximum operating temperature and is considered “stable.”
The Electronics Components, Assemblies & Materials Association (EIA) characterizes C0G dielectric as a Class I material.
Environmental & Export Classifications of C0603C272J5GACTU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.24.0020 |
