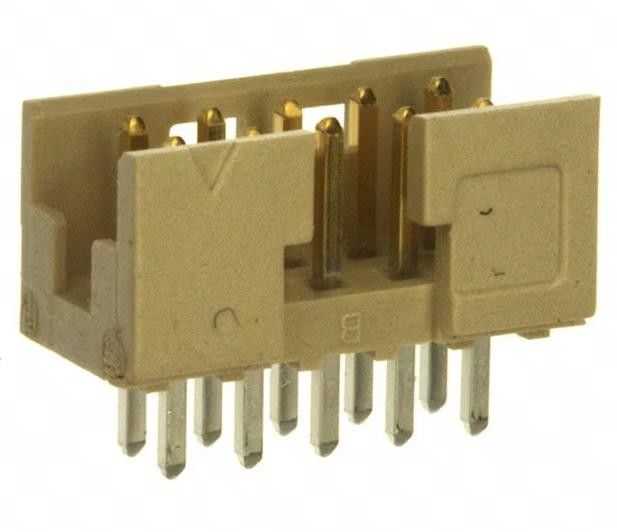

98414-G06-10ULF Connector Header Through Hole 10 Position 0.079" (2.00mm)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 98414-G06-10ULF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Contact Type: | Male Pin | Pitch - Mating: | 0.079" (2.00mm) |
|---|---|---|---|
| Number Of Positions: | 10 | Number Of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) | Number Of Positions Loaded: | All |
| Shrouding: | Shrouded - 4 Wall | Contact Length - Mating: | 0.157" (4.00mm) |
| Contact Length - Post: | 0.098" (2.50mm) | Insulation Height: | 0.232" (5.90mm) |
| High Light: | 98414-G06-10ULF,0.079" Through Hole Pin Header,10 position Through Hole Pin Header |
||
Product Description
98414-G06-10ULF Connector Header Through Hole 10 position 0.079" (2.00mm)
CONN HEADER VERT 10POS 2MM
Specifications of 98414-G06-10ULF
| TYPE | DESCRIPTION |
| Category | Headers, Male Pins |
| Mfr | Amphenol ICC (FCI) |
| Series | Minitek® 2.00mm |
| Package | Tube |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | 0.157" (4.00mm) |
| Contact Length - Post | 0.098" (2.50mm) |
| Overall Contact Length | - |
| Insulation Height | 0.232" (5.90mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold, GXT™ |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Keying Slot |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Cream |
| Current Rating (Amps) | 2A (AC/DC) |
| Voltage Rating | 200V (AC/DC) |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Applications | - |
| Base Product Number | 98414 |
Environmental & Export Classifications of 98414-G06-10ULF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
