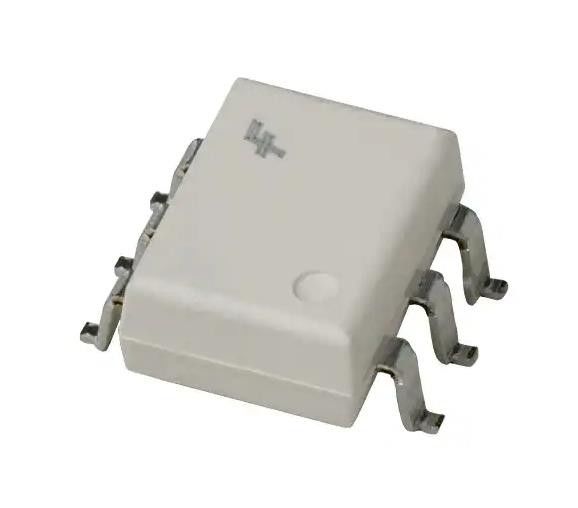

H11AA4SR2M Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | H11AA4SR2M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Channels: | 1 | Voltage - Isolation: | 4170Vrms |
|---|---|---|---|
| Current Transfer Ratio (Min): | 100% @ 10mA | Input Type: | AC, DC |
| Output Type: | Transistor With Base | Voltage - Output (Max): | 30V |
| Current - Output / Channel: | 50mA | Voltage - Forward (Vf) (Typ): | 1.17V |
| Current - DC Forward (If) (Max): | 60 MA | Vce Saturation (Max): | 400mV |
| High Light: | H11AA4SR2M,1 Channel Optoisolator Transistor,6-SMD Optoisolator Transistor |
||
Product Description
H11AA4SR2M Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD
OPTOISO 4.17KV TRANS W/BASE 6SMD
Specifications of H11AA4SR2M
| TYPE | DESCRIPTION |
| Category | Transistor, Photovoltaic Output Optoisolators |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Number of Channels | 1 |
| Voltage - Isolation | 4170Vrms |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | - |
| Input Type | AC, DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 30V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.17V |
| Current - DC Forward (If) (Max) | 60 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Base Product Number | H11AA |
Features of H11AA4SR2M
■ Bi-polar Emitter Input
■ Built-in Reverse Polarity Input Protection
■ Safety and Regulatory Approvals:
– UL1577, 4,170 VACRMS for 1 Minute
– DIN-EN/IEC60747-5-5, 850 V Peak Working Insulation Voltage
Applications of H11AA4SR2M
■ AC Line Monitor
■ Unknown Polarity DC Sensor
■ Telephone Line Interface
Environmental & Export Classifications of H11AA4SR2M
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
