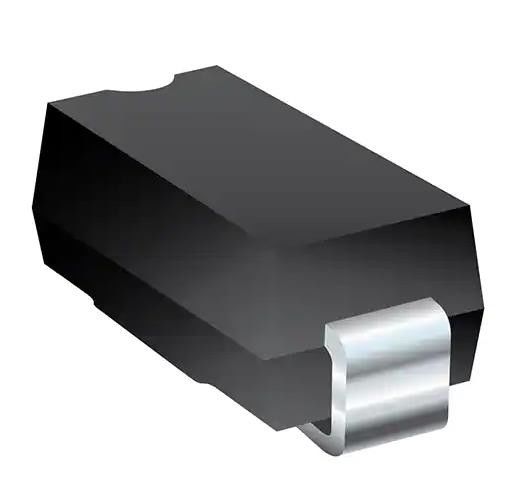

CD214B-T20ALF 32.4V Clamp 18.5A IPP TVS Diode Surface Mount SMB (DO-214AA)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CD214B-T20ALF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Zener | Unidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 20V | Voltage - Breakdown (Min): | 22.2V |
| Voltage - Clamping (Max) @ Ipp: | 32.4V | Current - Peak Pulse (10/1000µs): | 18.5A |
| Power - Peak Pulse: | 600W | Applications: | General Purpose |
| High Light: | CD214B-T20ALF,32.4V Clamp TVS Diode,DO-214AA TVS Diode |
||
Product Description
CD214B-T20ALF 32.4V Clamp 18.5A Ipp Tvs Diode Surface Mount SMB (DO-214AA)
TVS DIODE 20VWM 32.4VC SMB
Specifications of CD214B-T20ALF
| TYPE | DESCRIPTION |
| Category | TVS Diodes |
| Mfr | Bourns Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 20V |
| Voltage - Breakdown (Min) | 22.2V |
| Voltage - Clamping (Max) @ Ipp | 32.4V |
| Current - Peak Pulse (10/1000µs) | 18.5A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) |
| Base Product Number | CD214B |
Features of CD214B-T20ALF
■ Lead free
■ RoHS compliant*
■ Surface Mount SMB package
■ Standoff Voltage: 5.0 to 170 volts
■ Power Dissipation: 600 watts
Applications of CD214B-T20ALF
The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components.
Environmental & Export Classifications of CD214B-T20ALF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
