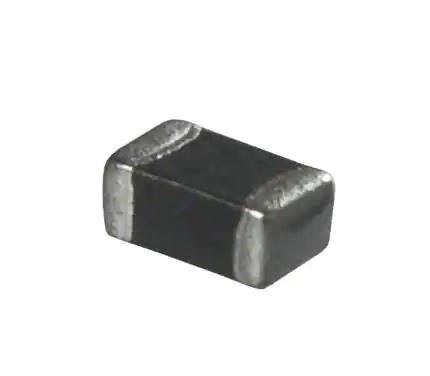

MI0603M121R-10 120 Ohms 100 MHz 1 Power Signal Line Ferrite Bead 0603 2.5A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MI0603M121R-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | 603 | Filter Type: | Power, Signal Line |
|---|---|---|---|
| Number Of Lines: | 1 | Impedance @ Frequency: | 120 Ohms @ 100 MHz |
| Current Rating (Max): | 2A | DC Resistance (DCR) (Max): | 50mOhm |
| Operating Temperature: | -40°C ~ 125°C | Height (Max): | 0.031" (0.80mm) |
| High Light: | MI0603M121R-10,0603 2.5A Ferrite Bead,Signal Line Ferrite Bead |
||
Product Description
MI0603M121R-10 120 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 0603 2.5A
FERRITE BEAD 120 OHM 0603 1LN
Specifications of MI0603M121R-10
| TYPE | DESCRIPTION |
| Category | Ferrite Beads and Chips |
| Mfr | Laird-Signal Integrity Products |
| Series | 603 |
| Package | Tape & Reel (TR) |
| Filter Type | Power, Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 2A |
| DC Resistance (DCR) (Max) | 50mOhm |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.031" (0.80mm) |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
Features of MI0603M121R-10
• Easy installation
• Each part for volume production is provided with permanent, double sided 3,5 mil acrylic adhesive with 218 oz. / inch2 adhesion
• Samples and sample kits are available with removable and reusable adhesive for “trial and error” testing
• Variety of sizes offered
• Custom parts also available.
Applications of MI0603M121R-10
• Can be used to locate unwanted EMI antennas
• Flat flex & ribbon cables
• Can also provide retrofit, auxiliary EMI attenuation
Environmental & Export Classifications of MI0603M121R-10
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8548.00.0000 |
