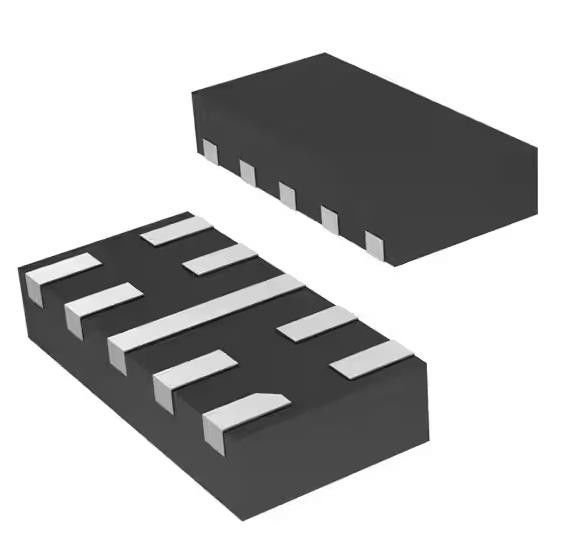

RCLAMP0544T.TCT 15V Clamp 5A (8/20µs) IPP TVS Diode Surface Mount SLP2010P8T
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | RCLAMP0544T.TCT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Steering (Rail To Rail) | Unidirectional Channels: | 4 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 5V (Max) | Voltage - Breakdown (Min): | 6.5V |
| Voltage - Clamping (Max) @ Ipp: | 15V | Current - Peak Pulse (10/1000µs): | 5A (8/20µs) |
| Power - Peak Pulse: | 75W | Power Line Protection: | Yes |
| Capacitance @ Frequency: | 0.45pF @ 1MHz | Operating Temperature: | -55°C ~ 125°C (TJ) |
| High Light: | RCLAMP0544T.TCT,15V Clamp TVS Diode,Surface Mount TVS Diode |
||
Product Description
RCLAMP0544T.TCT 15V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP2010P8T
TVS DIODE 5VWM 15VC SLP2010P8T
Specifications of RCLAMP0544T.TCT
| TYPE | DESCRIPTION |
| Category | TVS Diodes |
| Mfr | Semtech Corporation |
| Series | RailClamp® |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6.5V |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 75W |
| Power Line Protection | Yes |
| Applications | HDMI |
| Capacitance @ Frequency | 0.45pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFDFN |
| Supplier Device Package | SLP2010P8T |
| Base Product Number | RCLAMP0544 |
Features of RCLAMP0544T.TCT
* ESD protection for high-speed data lines to
- IEC 61000-4-2(ESD) 18kV (air)12kV (contact)
- IEC 61000-4-5(Lightning) 5A(8/20s)
- IEC 61000-4-4(EFT) 40A(5/50ns)
* Package design optimized for high speed lines
* Flow-Through design
* Protects four I/0 lines
* Low capacitance: 0.3pF typical (/0 to l/0)
* Low clamping voltage
* Low operating voltage: 5V
* Solid-state silicon-avalanche technology
Applications of RCLAMP0544T.TCT
* Cell Phones and Accessories
* HDMI
* MDDI Ports
* USB 3.0
* LVDS
* eSATA
* PCI Express
Environmental & Export Classifications of RCLAMP0544T.TCT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
