SD53-4R7-R 4.7 uH Shielded Drum Core Wirewound Inductor 2.01 A 45mOhm Max
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SD53-4R7-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Drum Core, Wirewound | Material - Core: | Ferrite |
|---|---|---|---|
| Inductance: | 4.7 µH | Tolerance: | ±20% |
| Current Rating (Amps): | 2.01 A | Current - Saturation (Isat): | 2.1A |
| Shielding: | Shielded | DC Resistance (DCR): | 45mOhm Max |
| Operating Temperature: | -40°C ~ 125°C | Inductance Frequency - Test: | 100 KHz |
| High Light: | SD53-4R7-R,Drum Core Wirewound Inductor,4.7 uH Shielded Wirewound Inductor |
||
Product Description

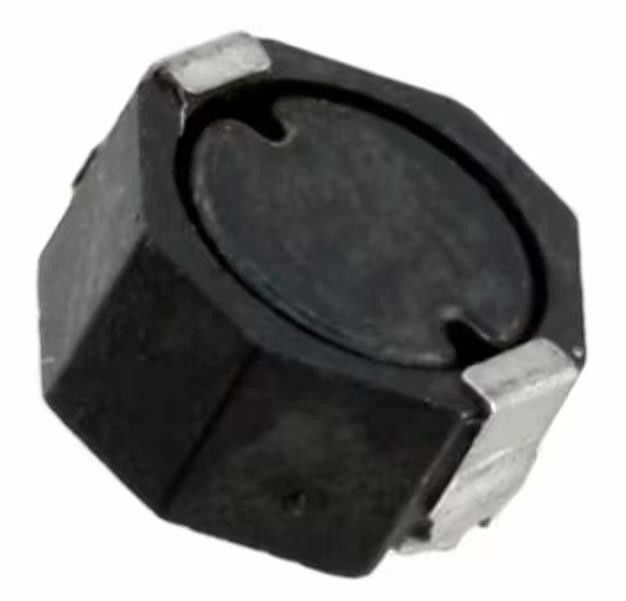

SD53-4R7-R 4.7 µH Shielded Drum Core, Wirewound Inductor 2.01 A 45mOhm Max
FIXED IND 4.7UH 2.01A 45MOHM SMD
Specifications of SD53-4R7-R
| TYPE | DESCRIPTION |
| Category | Fixed Inductors |
| Mfr | Eaton - Electronics Division |
| Series | SD53 |
| Package | Tape & Reel (TR) |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 2.01 A |
| Current - Saturation (Isat) | 2.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 45mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
Features of SD53-4R7-R
• Octagonal shape utilizes board space
• Shielded drum core
• Inductance range from 1.1 uH to 100 uH
• Current range from 0.44 A to 4.8 A
• 5.7 mm x 5.2 mm footprint surface mount package in a 3.0 mm height
• Ferrite core material
• Halogen free, lead free, RoHS compliant
Applications of SD53-4R7-R
• Desktop computers
• Notebook and laptop regulators
• LED and White LED drivers
• Digital cameras, media devices
• Battery power systems
Environmental & Export Classifications of SD53-4R7-R
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8504.50.8000 |
