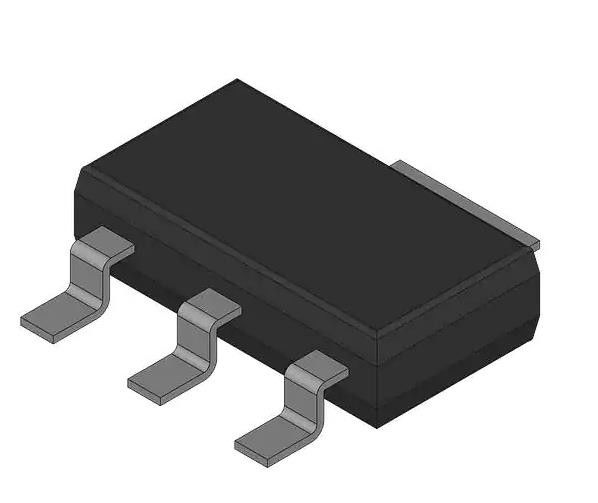

BCP52-16 Bipolar Transistor PNP 60 V 1 A 50MHz 1.4 W Surface Mount SOT-223
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BCP52-16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Transistor Type: | PNP | Current - Collector (Ic) (Max): | 0.041666667 |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 60V | Vce Saturation (Max) @ Ib, Ic: | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max): | 100nA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 100 @ 150mA, 2V |
| Power - Max: | 1.4 W | Frequency - Transition: | 50MHz |
| Operating Temperature: | 150°C (TJ) | ||
| High Light: | BCP52-16,Surface Mount PNP Bipolar Transistor,SOT-223 PNP Bipolar Transistor |
||
Product Description
BCP52-16 Bipolar (BJT) Transistor PNP 60 V 1 A 50MHz 1.4 W Surface Mount SOT-223
TRANS PNP 60V 1A SOT223
Specifications of BCP52-16
| TYPE | DESCRIPTION |
| Category | Single Bipolar Transistors |
| Mfr | Infineon Technologies |
| Series | - |
| Package | Bulk |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 0.041666667 |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 2V |
| Power - Max | 1.4 W |
| Frequency - Transition | 50MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
Features of BCP52-16
• For AF driver and output stages
• High collector current
• Low collector-emitter saturation voltage
• Complementary types: BCP54 ... BCP56 (NPN)
• Pb-free (RoHS compliant) package 1)
• Qualified according AEC Q101
Applications of BCP52-16
For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office
Environmental & Export Classifications of BCP52-16
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
Want to Know more details about this product
