EMVA500ADA470MF80G Aluminum 47uf 50v Electrolytic Capacitor SMD 2000 Hrs 85°C
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | EMVA500ADA470MF80G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Capacitance: | 47 µF | Tolerance: | ±20% |
|---|---|---|---|
| Voltage - Rated: | 50V | Lifetime @ Temp.: | 2000 Hrs @ 85°C |
| Operating Temperature: | -40°C ~ 85°C | Polarization: | Polar |
| Ripple Current @ Low Frequency: | 85 MA @ 120 Hz | Ripple Current @ High Frequency: | 91.8 MA @ 100 KHz |
| Height - Seated (Max): | 0.303" (7.70mm) | Surface Mount Land Size: | 0.260" L X 0.260" W (6.60mm X 6.60mm) |
| High Light: | EMVA500ADA470MF80G,SMD 47uf 50v Electrolytic Capacitor,Aluminum 47uf 50v Electrolytic Capacitor |
||
Product Description

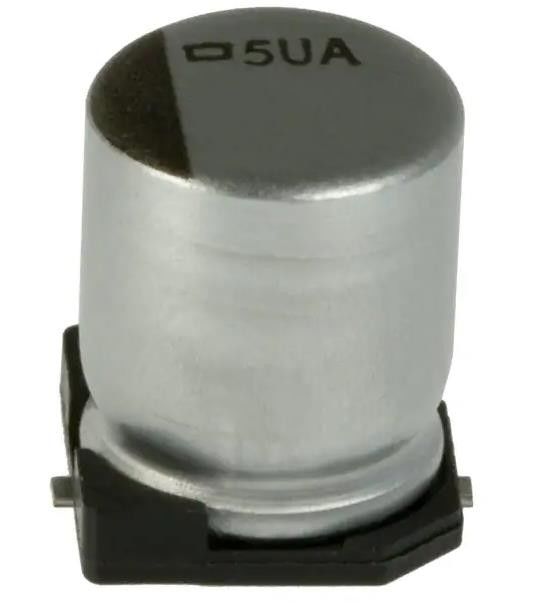

EMVA500ADA470MF80G Aluminum Electrolytic Capacitors 47 µF 50 V SMD 2000 Hrs 85°C
CAP ALUM 47UF 20% 50V SMD
Specifications of EMVA500ADA470MF80G
| TYPE | DESCRIPTION |
| Category | Aluminum Electrolytic Capacitors |
| Mfr | United Chemi-Con |
| Series | Alchip™- MVA |
| Package | Tape & Reel (TR) |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 91.8 mA @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Environmental & Export Classifications of EMVA500ADA470MF80G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.22.0020 |
