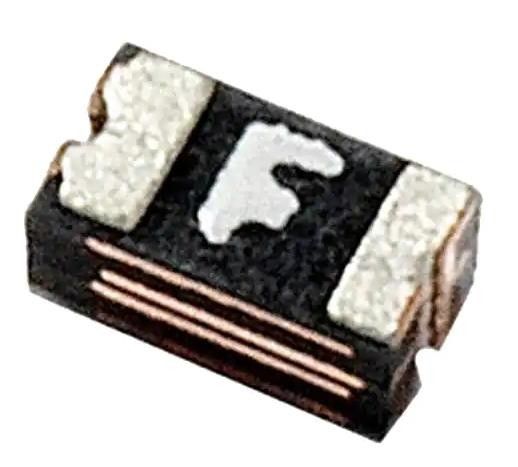

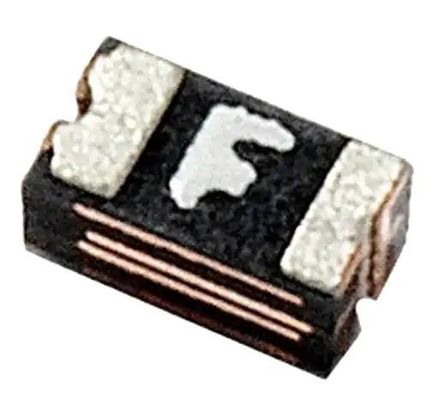

0603L010YR Polymeric PTC Resettable Fuse With 15V 100 mA Ih Surface Mount 0603
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 0603L010YR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | POLY-FUSE®, 0603L | Voltage - Max: | 15V |
|---|---|---|---|
| Current - Hold (Ih) (Max): | 100 MA | Current - Trip (It): | 300 MA |
| Current - Max: | 40 A | Time To Trip: | 1 S |
| Resistance - Initial (Ri) (Min): | 900 MOhms | Resistance - Post Trip (R1) (Max): | 6 Ohms |
| Operating Temperature: | -40°C ~ 85°C | Size / Dimension: | 0.063" L X 0.032" W (1.60mm X 0.80mm) |
| High Light: | 0603L010YR,15V 100 mA PTC Resettable Fuse,0603 PTC Resettable Fuse |
||
Product Description
0603L010YR Polymeric PTC Resettable Fuse With 15V 100 mA Ih Surface Mount 0603
PTC RESET FUSE 15V 100MA 0603
Specifications of 0603L010YR
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Mfr | Littelfuse Inc. |
| Series | POLY-FUSE®, 0603L |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Trip (It) | 300 mA |
| Current - Max | 40 A |
| Time to Trip | 1 s |
| Resistance - Initial (Ri) (Min) | 900 mOhms |
| Resistance - Post Trip (R1) (Max) | 6 Ohms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric), Concave |
| Size / Dimension | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
Features of 0603L010YR
■ RoHS compliant, lead-free and halogen free
■ Fast response to fault currents
■ Compact design saves board space
■ Low resistance
■ Low-profile
■ Compatible with high temperature solders
Introduction of 0603L010YR
■ USB peripherals
■ Disk drives
■ CD-ROMs
■ Plug and play protection for motherboards and peripherals
■ PDAs / digital cameras
■ Game console port protection
Environmental & Export Classifications of 0603L010YR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.40.8070 |
