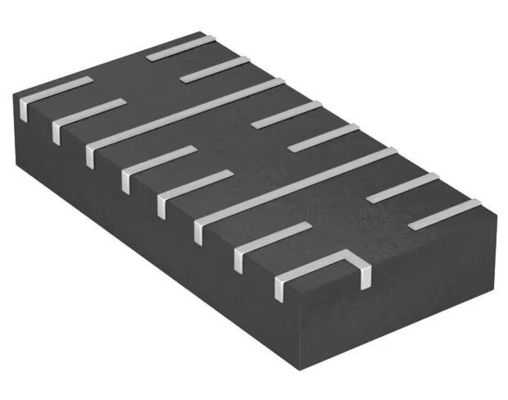

SP5002-06TTG Electronic Components 6 Line Common Mode Choke 100mA DCR
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SP5002-06TTG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | SP5002 | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Filter Type: | Signal Line | Number Of Lines: | 6 |
| Current Rating (Max): | 100mA | Operating Temperature: | -40°C ~ 125°C |
| Ratings: | AEC-Q101 | Size / Dimension: | 0.157" L X 0.079" W (4.00mm X 2.00mm) |
| Height (Max): | 0.032" (0.80mm) | Package / Case: | 16-WFDFN |
| High Light: | SP5002-06TTG,SP5002-06TTG Electronic Components,6 Line Common Mode Choke |
||
Product Description
SP5002-06TTG Electronic Components 6 Line Common Mode Choke 100mA DCR
CMC 100MA 6LN SMD ESD AEC-Q101
Specifications of SP5002-06TTG
| TYPE | DESCRIPTION |
| Category | Filters |
| Common Mode Chokes | |
| Mfr | Littelfuse Inc. |
| Series | SP5002 |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Filter Type | Signal Line |
| Number of Lines | 6 |
| Current Rating (Max) | 100mA |
| DC Resistance (DCR) (Max) | - |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q101 |
| Approval Agency | - |
| Features | ESD |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.157" L x 0.079" W (4.00mm x 2.00mm) |
| Height (Max) | 0.032" (0.80mm) |
| Package / Case | 16-WFDFN |
Features of SP5002-06TTG
• Large differential bandwidth > 2GHz
• High Common Mode Stop Band Attenuation:
> 25 dB at 700 MHz
> 30 dB at 800 MHz
• ±15kV ESD protection per channel (IEC 61000-4-2 Level 4, contact discharge and ±30kV air discharge)
• TDFN-16 4.00mm × 2.00mm × 0.75mm package with 0.50mm lead pitch
• RoHS-Compliant, LeadFree packaging
• Moisture Sensitivity Level (MSL-1)
Introduction of SP5002-06TTG
• MIPI D-PHY (CSI-2, DSI,etc) in Mobile Phones and Digital Still Cameras
• HDMI/DVI Display in Mobile Phones
Environmental & Export Classifications of SP5002-06TTG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8548.00.0000 |
