SIR426DP-T1-GE3 N-Channel MOSFETs 40 V 30A 4.8W 41.7W Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SIR426DP-T1-GE3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 40 V | Current - Continuous Drain (Id) @ 25°C: | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V | Rds On (Max) @ Id, Vgs: | 10.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id: | 2.5V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 31 NC @ 10 V |
| Vgs (Max): | ±20V | Input Capacitance (Ciss) (Max) @ Vds: | 1160 PF @ 20 V |
| High Light: | SIR426DP-T1-GE3,SIR426DP-T1-GE3 MOSFETs,Surface Mount N-Channel MOSFETs |
||
Product Description

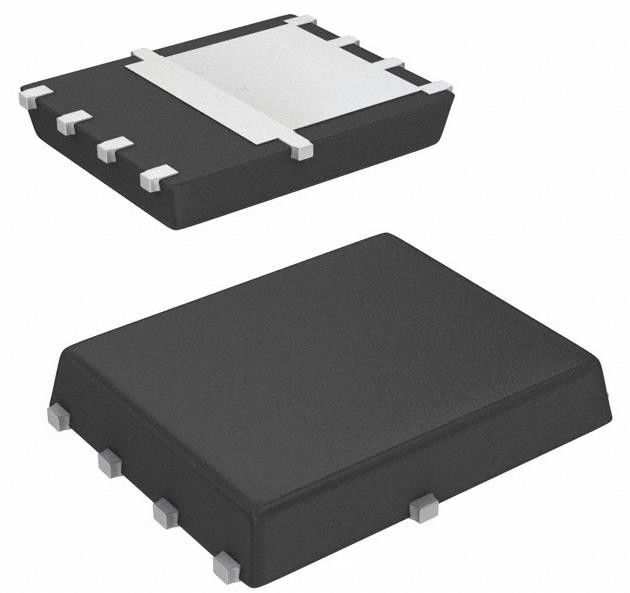

SIR426DP-T1-GE3 MOSFETs N-Channel 40 V 30A 4.8W 41.7W Surface Mount PowerPAK®
MOSFET N-CH 40V 30A PPAK SO-8
Specifications of SIR426DP-T1-GE3
| TYPE | DESCRIPTION |
| Category | Single FETs, MOSFETs |
| Mfr | Vishay Siliconix |
| Series | TrenchFET® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1160 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 4.8W (Ta), 41.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
| Base Product Number | SIR426 |
Features of SIR426DP-T1-GE3
• TrenchFET® Power MOSFET
• 100 % Rg and UIS Tested
Applications of SIR426DP-T1-GE3
• DC/DC Converters
- Synchronous Buck
- Synchronous Rectifier
Environmental & Export Classifications of SIR426DP-T1-GE3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
