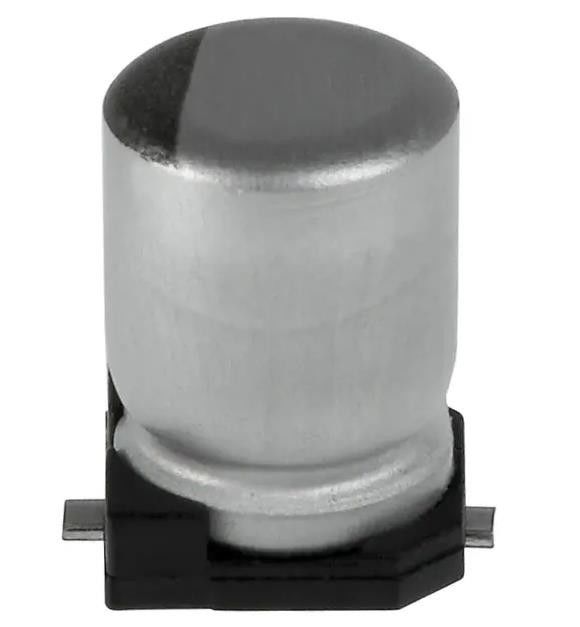

EMZA100ADA330MD61G Aluminum Electrolytic Capacitors With 2000 Hrs 105°C 33 µF 10 V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | EMZA100ADA330MD61G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | Alchip™- MZA | Capacitance: | 33 µF |
|---|---|---|---|
| Tolerance: | ±20% | Voltage - Rated: | 10 V |
| Lifetime @ Temp.: | 2000 Hrs @ 105°C | Operating Temperature: | -55°C ~ 105°C |
| Polarization: | Polar | Ripple Current @ Low Frequency: | 36 MA @ 120 Hz |
| High Light: | EMZA100ADA330MD61G,Polar Aluminum Electrolytic Capacitors,33 uF 10 V Capacitors |
||
Product Description
EMZA100ADA330MD61G Aluminum Electrolytic Capacitors With 2000 Hrs 105°C 33 µF 10 V
CAP CER 22PF 50V C0G/NPO 0603
Specifications of EMZA100ADA330MD61G
| TYPE | DESCRIPTION |
| Category | Aluminum Electrolytic Capacitors |
| Mfr | United Chemi-Con |
| Series | Alchip™- MZA |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 36 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.35 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Features of EMZA100ADA330MD61G
* Endurance : 2,000 to 5,000 hours at 105℃
* Low impedance ・Solvent resistant type(see PRECAUTIONS AND GUIDELINES)
* Vibration resistant structure
* RoHS2 Compliant
* AEC-Q200 compliant : Please contact Chemi-Con for more details, test data, information.
Environmental & Export Classifications of EMZA100ADA330MD61G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.22.0020 |
