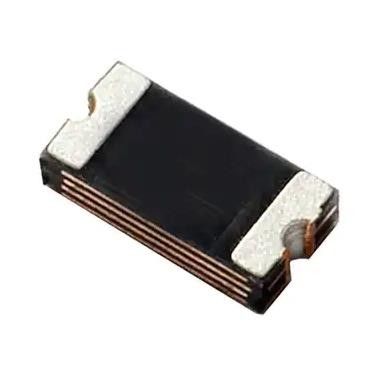

1206L050/15YR Polymeric PTC Resettable Fuse With 15V 500 mA Ih 1206 Concave
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 1206L050/15YR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - Max: | 15V | Current - Hold (Ih) (Max): | 500 MA |
|---|---|---|---|
| Current - Trip (It): | 1:00 AM | Current - Max: | 100 A |
| Time To Trip: | 100 Ms | Resistance - Initial (Ri) (Min): | 150 MOhms |
| Resistance - Post Trip (R1) (Max): | 750 MOhms | Operating Temperature: | -40°C ~ 85°C |
| Size / Dimension: | 0.126" L X 0.065" W (3.20mm X 1.65mm) | Thickness (Max): | 0.030" (0.75mm) |
| High Light: | 1206L050/15YR,Polymeric PTC Resettable Fuse |
||
Product Description
1206L050/15YR Polymeric PTC Resettable Fuse With 15V 500 mA Ih 1206 Concave
PTC RESET FUSE 15V 500MA 1206
Specifications of 1206L050/15YR
| TYPE | DESCRIPTION |
| Category | PTC Resettable Fuses |
| Mfr | Littelfuse Inc. |
| Series | POLY-FUSE®, 1206L |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Trip (It) | 1:00 AM |
| Current - Max | 100 A |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 750 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.065" W (3.20mm x 1.65mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.030" (0.75mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
Features of 1206L050/15YR
• RoHS compliant, lead-free and halogen-free
• Fast response to fault currents
• Compact design saves board space
• Low resistance
• Low-profile
• Compatible with high temperature solders
Applications of 1206L050/15YR
• USB peripherals
• Disk drives
• CD-ROMs
• Plug and play protection for motherboards and peripherals
• Mobile phones - battery and port protection
• Disk drives
• PDAs / digital cameras
• Game console port protection
Environmental & Export Classifications of 1206L050/15YR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.40.8070 |
