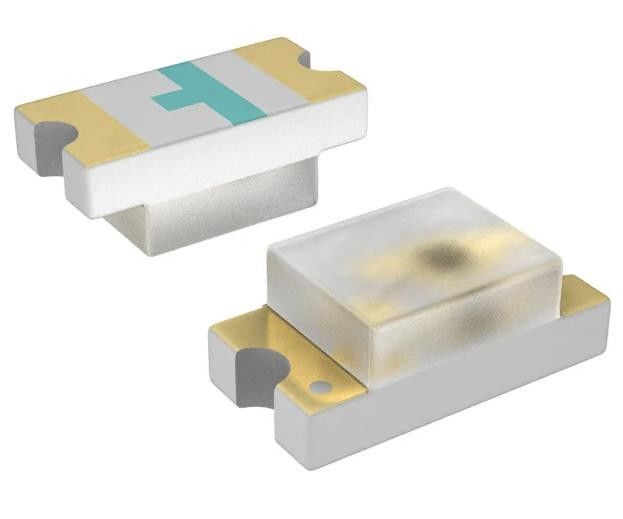

SML-LX0603GW-TR Green LED Indication - Discrete SMD 2.2V 0603 (1608 Metric)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SML-LX0603GW-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Lens Color: | White | Lens Transparency: | Diffused |
|---|---|---|---|
| Millicandela Rating: | 18mcd | Lens Style: | Rectangle With Flat Top |
| Lens Size: | 1.00mm X 0.80mm | Voltage - Forward (Vf) (Typ): | 2.2V |
| Current - Test: | 20mA | Viewing Angle: | 160° |
| Wavelength - Peak: | 565nm | Size / Dimension: | 1.60mm L X 0.80mm W |
| High Light: | SML-LX0603GW-TR,Green LED Indication SMD |
||
Product Description
SML-LX0603GW-TR Green LED Indication - Discrete 2.2V 0603 (1608 Metric)
LED GREEN DIFFUSED SMD
Specifications of SML-LX0603GW-TR
| TYPE | DESCRIPTION |
| Category | Optoelectronics |
| LED Indication - Discrete | |
| Mfr | Lumex Opto/Components Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Color | Green |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 18mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Current - Test | 20mA |
| Viewing Angle | 160° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | 565nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.60mm |
| Base Product Number | SML-LX0603 |
Features of SML-LX0603GW-TR
Millicandela Rating : 18mcd
Lens Style : Rectangle with Flat Top
Lens Size 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 160°
Mounting Type Surface Mount
Wavelength - Peak 565nm
Package / Case 0603 (1608 Metric)
Supplier Device Package -
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.60mm
Base Product Number SML-LX0603
Environmental & Export Classifications of SML-LX0603GW-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.41.0000 |
