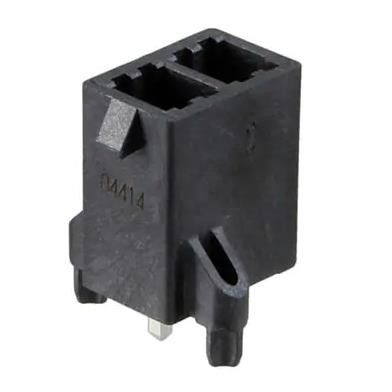

1720650002 Electronic Components Connector Header Through Hole 2 position
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 1720650002 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Positions: | 2 | Number Of Rows: | 2 |
|---|---|---|---|
| Row Spacing - Mating: | 0.224" (5.70mm) | Number Of Positions Loaded: | All |
| Style: | Board To Cable/Wire | Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Through Hole | Termination: | Solder |
| Contact Length - Post: | 0.147" (3.73mm) | Insulation Height: | 0.583" (14.80mm) |
Product Description
1720650002 Electronic Components Connector Header Through Hole 2 position
CONN HEADER VERT 2POS
Specifications of 1720650002
| TYPE | DESCRIPTION |
| Category | Connectors, Interconnects |
| Headers, Male Pins | |
| Mfr | Molex |
| Series | Mega-Fit |
| Package | Tray |
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.224" (5.70mm) |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Length - Mating | - |
| Contact Length - Post | 0.147" (3.73mm) |
| Overall Contact Length | - |
| Insulation Height | 0.583" (14.80mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Features | Board Guide, Glow Wire Compliant |
| Operating Temperature | - |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Base Product Number | 172065 |
Features of 1720650002
* Power-dense design with high-current terminals, tight pitch and row spacing
* Positive locking housing
* Tin-plated contacts available
* Fully isolated header pins and receptacle terminals
* Tangless terminal design
* Terminal interface with six independent points of contact (split-box terminal design)
* Polarization peg to engage with PCB
* Crush peg removal
Applications of 1720650002
* Home Appliance
- Washers and dryers Heaters and air conditioners
* Telecommunication/Networking
- Hubs and servers Power supplies and distribution
* Industrial
- Machinery and heavy equipment Lighting and automation
* Commercial Vehicle
- Unsealed electronic control modules Power converters
Environmental & Export Classifications of 1720650002
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
