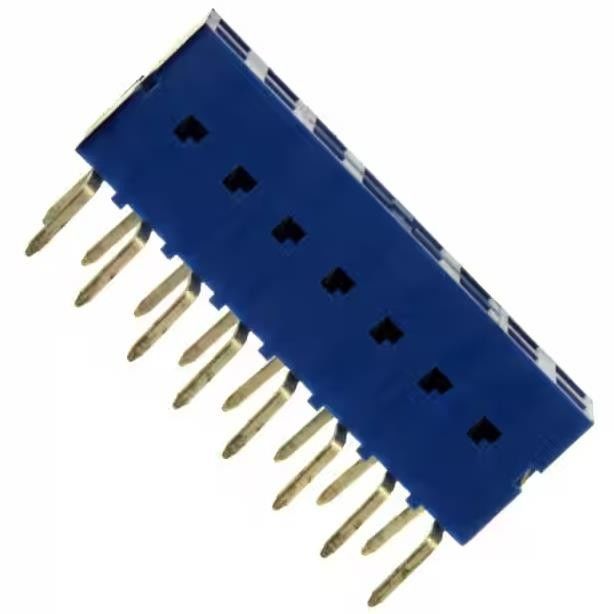

71991-308LF Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 71991-308LF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Positions: | 16 | Number Of Positions Loaded: | A11 |
|---|---|---|---|
| Pitch - Mating: | 0.100" (2.54mm) | Number Of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) | Mounting Type: | Through Hole |
| Termination: | Solder | Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Insulation Color: | Blue | Insulation Height: | 0.275" (6.99mm) |
Product Description
71991-308LF Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold
CONN RCPT 16POS 0.1 GOLD PCB
Specifications of 71991-308LF
| TYPE | DESCRIPTION |
| Category | Headers, Receptacles, Female Sockets |
| Mfr | Amphenol ICC (FCI) |
| Series | Dubox™ |
| Package | Tube |
| Product Status | Active |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Insulation Color | Blue |
| Insulation Height | 0.275" (6.99mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | 11.04mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
| Insulation Material | Thermoplastic, Glass Filled |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Base Product Number | 71991 |
Environmental & Export Classifications of 71991-308LF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
