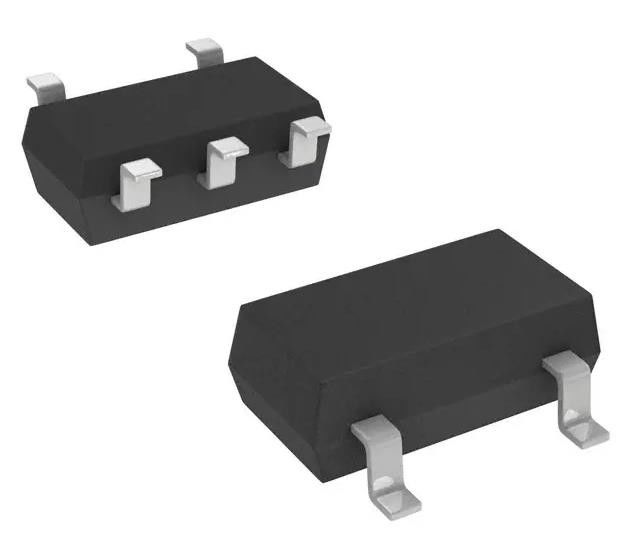

PESD3V3L4UG,115 12V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 5-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PESD3V3L4UG,115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Unidirectional Channels: | 4 | Voltage - Reverse Standoff (Typ): | 3.3V (Max) |
|---|---|---|---|
| Voltage - Breakdown (Min): | 5.32V | Voltage - Clamping (Max) @ Ipp: | 12V |
| Current - Peak Pulse (10/1000µs): | 3A (8/20µs) | Power - Peak Pulse: | 30W |
| Power Line Protection: | No | Applications: | General Purpose |
| Capacitance @ Frequency: | 22pF @ 1MHz | Operating Temperature: | -65°C ~ 150°C (TA) |
Product Description
PESD3V3L4UG,115 12V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 5-TSSOP
TVS DIODE 3.3VWM 12VC 5TSSOP
Specifications of PESD3V3L4UG,115
| TYPE | DESCRIPTION |
| Category | TVS Diodes |
| Mfr | Nexperia USA Inc. |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Zener |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 5.32V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 30W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 22pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | 5-TSSOP |
| Base Product Number | PESD3 |
Features of PESD3V3L4UG,115
* ESD protection of up to four lines
■ Ultra low leakage current: IRM = 5 nA
■ Low diode capacitance
■ ESD protection up to 20 kV
■ Max. peak pulse power: PPP = 30 W
■ IEC 61000-4-2; level 4 (ESD)
■ Low clamping voltage: VCL = 12 V
■ IEC 61000-4-5 (surge); IPP = 2.5 A
Applications of PESD3V3L4UG,115
■ Computers and peripherals
■ Communication systems
■ Audio and video equipment
■ Portable electronics
■ Cellular handsets and accessories
■ Subscriber Identity Module (SIM) card protection
Environmental & Export Classifications of PESD3V3L4UG,115
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
