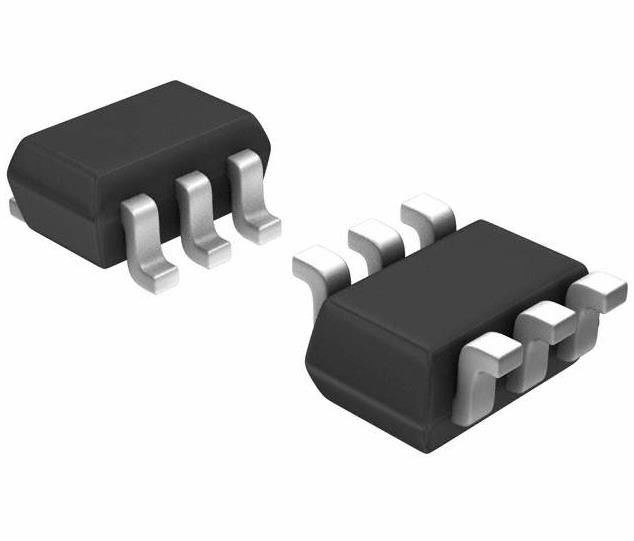

SI1416EDH-T1-GE3 N-Channel 30 V 3.9A 2.8W Surface Mount SC-70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SI1416EDH-T1-GE3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | N-Channel | Technology: | MOSFET (Metal Oxide) |
|---|---|---|---|
| Drain To Source Voltage (Vdss): | 30V | Current - Continuous Drain (Id) @ 25°C: | 3.9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 10V | Rds On (Max) @ Id, Vgs: | 58mOhm @ 3.1A, 10V |
| Vgs(th) (Max) @ Id: | 1.4V @ 250µA | Gate Charge (Qg) (Max) @ Vgs: | 12 NC @ 10 V |
| Vgs (Max): | ±12V | Power Dissipation (Max): | 2.8W (Tc) |
Product Description
CG3 2.7L Gas Discharge Tube 2700 V 5000A (5kA) 2 Pole Through Hole
GDT 2700V 5KA 2 POLE TH
Specifications of SI1416EDH-T1-GE3
| TYPE | DESCRIPTION |
| Category | Single FETs, MOSFETs |
| Mfr | Vishay Siliconix |
| Series | TrenchFET® |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 3.9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 58mOhm @ 3.1A, 10V |
| Vgs(th) (Max) @ Id | 1.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12 nC @ 10 V |
| Vgs (Max) | ±12V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-6 |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Base Product Number | SI1416 |
Features of SI1416EDH-T1-GE3
• TrenchFET® power MOSFET
• Typical ESD protection 1500 V in HBM
• 100 % Rg tested
Note of SI1416EDH-T1-GE3
• Portable devices such as smart phones and tablet PCs
- DC/DC converters
- High frequency switching
- OVP switch
- Load switch
Environmental & Export Classifications of SI1416EDH-T1-GE3
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
