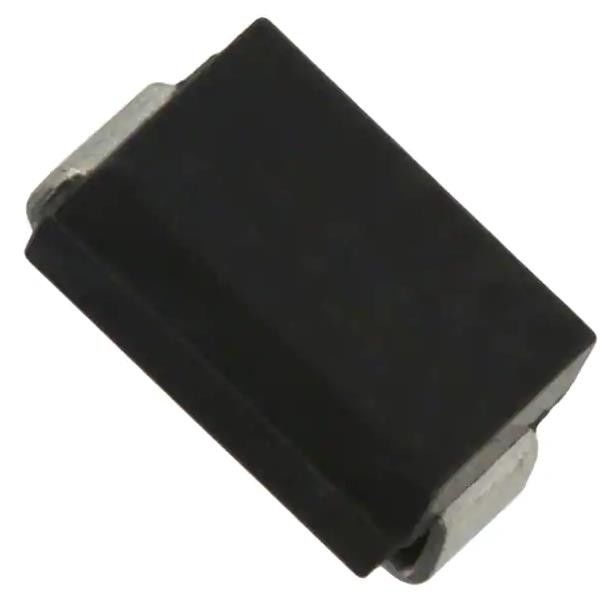

ES1B Electronic Components Diode 100 V 1A Surface Mount DO-214AC (SMA)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ES1B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 100 V | Current - Average Rectified (Io): | 1A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 920 MV @ 1 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 15 Ns | Current - Reverse Leakage @ Vr: | 5 µA @ 100 V |
| Capacitance @ Vr, F: | 7pF @ 4V, 1MHz | Supplier Device Package: | DO-214AC (SMA) |
Product Description
ES1B Electronic Components Diode 100 V 1A Surface Mount DO-214AC (SMA)
RECTIFIER, SUPER FAST, 1A, 100V,
Specifications of ES1B
| TYPE | DESCRIPTION |
| Category | Single Diodes |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 15 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
| Capacitance @ Vr, F | 7pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | ES1 |
Features of ES1B
• For surface mount applications.
• Glass passivated junction.
• Low profile package.
• Easy pick and place.
• Built-in strain relief.
• Superfast recovery times for high efficiency
Note of ES1B
1. Measured at 1 MHz and Applied VR=4.0 Volts
2. Reverse Recovery Test Conditions: IF=0.5A, IR=1.0A, IRR=0.25A
3. P.C.B. Mounted on 0.2 x 0.2" (5.0 x 5.0mm) Copper Pad Area
Environmental & Export Classifications of ES1B
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
