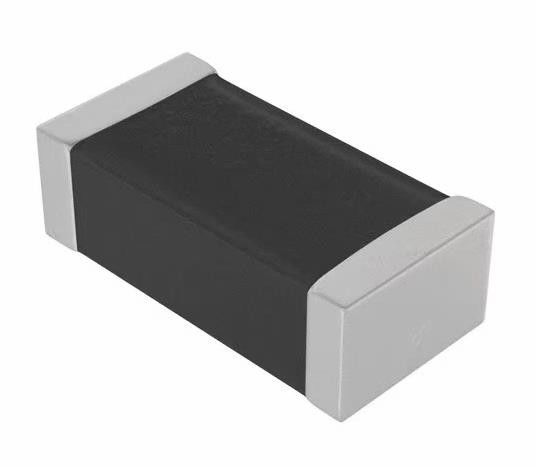

7427925111 Signal Line Ferrite Bead 20 Ohms @ 100 MHz 1 1812 (4532 Metric) 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 742792511 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Filter Type: | Signal Line | Number Of Lines: | 1 |
|---|---|---|---|
| Impedance @ Frequency: | 120 Ohms @ 100 MHz | Current Rating (Max): | 3A |
| DC Resistance (DCR) (Max): | 50mOhm | Operating Temperature: | -55°C ~ 125°C |
Product Description
7427925111 Signal Line Ferrite Bead 20 Ohms @ 100 MHz 1 1812 (4532 Metric) 3A
FERRITE BEAD 120 OHM 1812 1LN
Specifications of 7427925111
| TYPE | DESCRIPTION |
| Category | Ferrite Beads and Chips |
| Mfr | Würth Elektronik |
| Series | WE-CBF |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Filter Type | Signal Line |
| Number of Lines | 1 |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Current Rating (Max) | 3A |
| DC Resistance (DCR) (Max) | 50mOhm |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 1812 (4532 Metric) |
| Mounting Type | Surface Mount |
| Height (Max) | 0.067" (1.70mm) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
Environmental & Export Classifications of 7427925111
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8548.00.0000 |
