IRLML5103TRPBF Electronic Components MOSFET P-Channel 30 V 760mA 540mW
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IRLML5103TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| FET Type: | P-Channel | Drain To Source Voltage (Vdss): | 30 V |
|---|---|---|---|
| Current - Continuous Drain (Id) @ 25°C: | 760mA (Ta) | Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 600mOhm @ 600mA, 10V | Vgs(th) (Max) @ Id: | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 5.1 NC @ 10 V | Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 75 PF @ 25 V | Power Dissipation (Max): | 540mW (Ta) |
Product Description
IRLML5103TRPBF Electronic Components MOSFET P-Channel 30 V 760mA 540mW

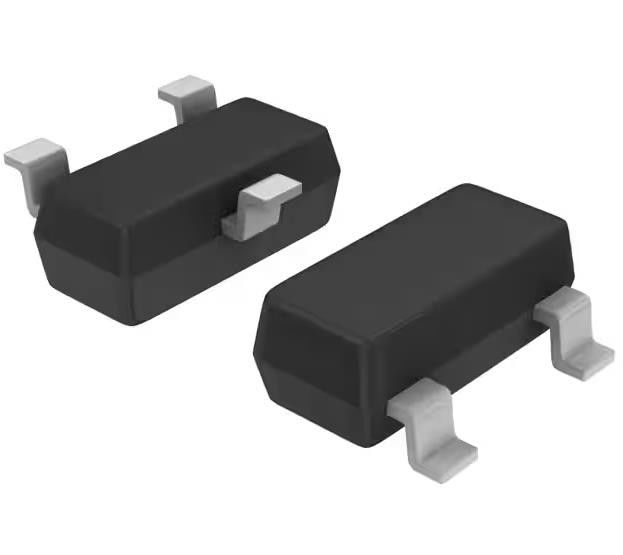

MOSFET P-CH 30V 760MA SOT23
Specifications of IRLML5103TRPBF
| TYPE | DESCRIPTION |
| Category | Single FETs, MOSFETs |
| Mfr | Infineon Technologies |
| Series | HEXFET® |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 760mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 600mOhm @ 600mA, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.1 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 75 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 540mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Micro3™/SOT-23 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | IRLML5103 |
Features of IRLML5103TRPBF
* Generation V Technology
* UltraLow On-Resistance
* P-ChannelMOSFET
* SOT-23 Footprint
* Low Profile (<1.1mm)
* Available in Tape and Reel
* Fast Switching
* Lead-Free
* RoHS Compliant, Halogen-Free
Descriptions of IRLML5103TRPBF
FifthGeneration HEXFETs from International Rectifierutilize advanced processing techniques to achieveextremely low on-resistance per silicon area. This benefit.combined with the fast switching speed and ruggedizeddevice design that HEXFET Power MOSFETs are wellknown for, provides the designer with an extremely efficientand reliable device for use in a wide variety of applications.
