SN74LV595ADR Electronic IC Chips With Register 1 Element 8 Bit 16-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LV595ADR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Logic Type: | Shift Register | Output Type: | Tri-State |
|---|---|---|---|
| Number Of Elements: | 1 | Number Of Bits Per Element: | 8 |
| Function: | Serial To Parallel, Serial | Voltage - Supply: | 2V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
Product Description

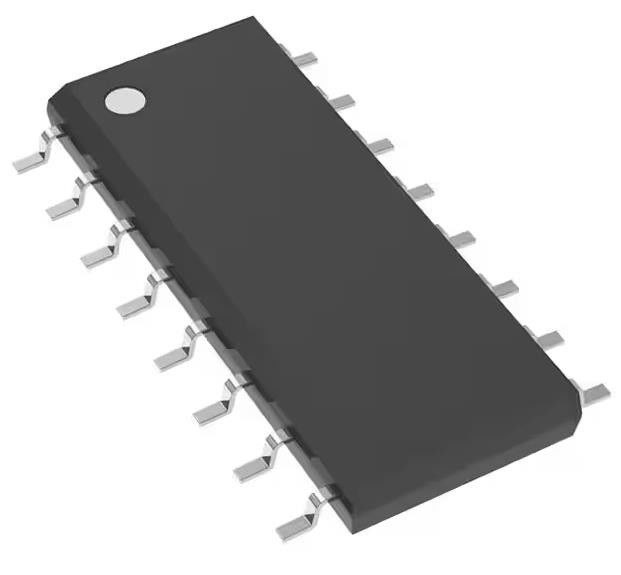

SN74LV595ADR Electronic IC Chips With Register 1 Element 8 Bit 16-SOIC
IC 8-BIT SHFT REG TRI-ST 16-SOIC
Specifications of SN74LV595ADR
| Category | Integrated Circuits (ICs) |
| Shift Registers | |
| Mfr | Texas Instruments |
| Series | 74LV |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Logic Type | Shift Register |
| Output Type | Tri-State |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Function | Serial to Parallel, Serial |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | 74LV595 |
Features of SN74LV595ADR
• VCC operation of 2 V to 5.5 V
• Maximum tpd of 7.1 ns at 5 V
• Typical VOLP (output ground bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C
• Typical VOHV (output VOH undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C
• Support mixed-mode voltage operation on all ports
• 8-bit serial-in, parallel-out shift
• Ioff supports live insertion, partial power-down mode, and back-drive protection
• Shift register has direct clear
• Latch-up performance exceeds 250 mA per JESD 17
Applications of SN74LV595ADR
• Output expansion
• LED matrix control
• 7-segment display control
Environmental & Export Classifications of SN74LV595ADR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
