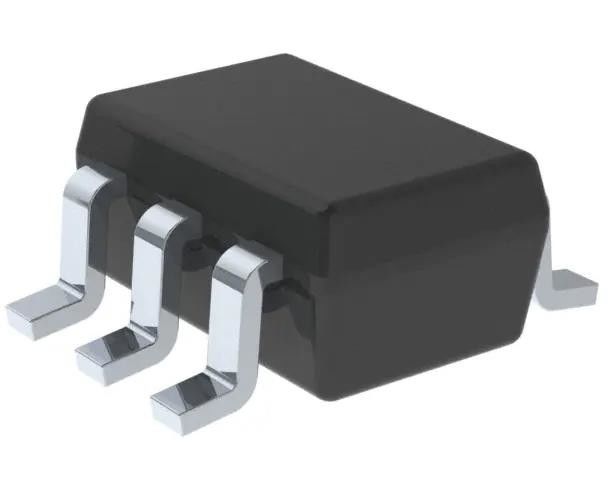

SN74LVC1G11DCKR AND Gate Electronic IC Chips With 1 Channel SC-70-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC1G11DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Number Of Inputs: | 3 |
|---|---|---|---|
| Voltage - Supply: | 1.65V ~ 5.5V | Current - Quiescent (Max): | 10 µA |
| Current - Output High, Low: | 32mA, 32mA | Input Logic Level - Low: | 0.7V ~ 0.8V |
| Input Logic Level - High: | 1.7V ~ 2V | Max Propagation Delay @ V, Max CL: | 3.5ns @ 5V, 50pF |
Product Description
SN74LVC1G11DCKR AND Gate Electronic IC Chips With 1 Channel SC-70-6
IC GATE AND 1CH 3-INP SC70-6
Specifications of SN74LVC1G11DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 3 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 3.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-6 |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Base Product Number | 74LVC1G11 |
Features of SN74LVC1G11DCKR
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 1000-V Charged-Device Model (C101)
• Available in the Texas Instruments NanoFree™ Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Maximum tpd of 4.1 ns at 3.3 V
• Low Power Consumption, 10-μA Maximum ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Partial-Power-Down Mode Operation
Descriptions of SN74LVC1G11DCKR
• AV Receivers
• DLP Front Projection System
• Digital Picture Frames
• Digital Radio
• Digital Still Cameras
• Digital Video Cameras (DVC)
• Embedded PCs
• E-Books
• Ethernet Switchs
• GPS: Personal Navigation Devices
• Handset: Smartphones
• High-Speed Data Acquisition and Generation
• Military: Radar and Sonar
• Mobile Internet Devices
• Notebook PC and Netbooks
• Network-Attached Storage (NAS)
• Power Line Communication Modems
• Server PSU
• STB, DVR, and Streaming Media
• Speakers: USB
• Tablets: Enterprise
• Video Broadcasting and Infrastructure: Scalable Platform and IP-Based Multi-Format Transcoders
• Wireless Headsets, Keyboards, and Mice
Environmental & Export Classifications of SN74LVC1G11DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
