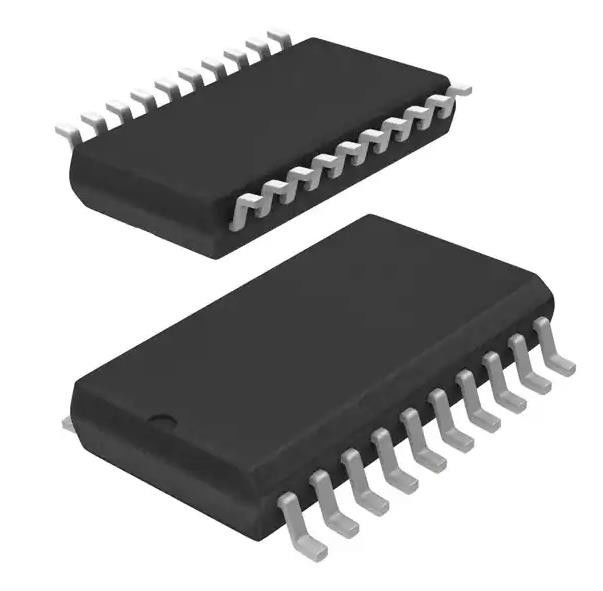

74ACT244SCX Buffer Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 74ACT244SCX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | 74AVCH | Number Of Elements: | 2 |
|---|---|---|---|
| Logic Type: | Translation Transceiver | Operating Temperature: | -40°C ~ 85°C (TA) |
| Output Type: | 3-State | Current - Output High, Low: | 24mA, 24mA |
| Number Of Bits Per Element: | 4 | Voltage - Supply: | 4.5V ~ 5.5V |
Product Description
74ACT244SCX Buffer Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-SOIC
IC BUF NON-INVERT 5.5V 20SOIC
Specifications of 74ACT244SCX
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | onsemi |
| Series | 74ACT |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Buffer, Non-Inverting |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 24mA, 24mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | 74ACT244 |
Features of 74ACT244SCX
■ ICC and IOZ reduced by 50%
■ 3-STATE outputs drive bus lines or buffer memory address registers
■ Outputs source/sink 24mA
■ ACT244 has TTL-compatible inputs
Descriptions of 74ACT244SCX
The AC/ACT244 is an octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver which provides improved PC board density.
Environmental & Export Classifications of 74ACT244SCX
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
