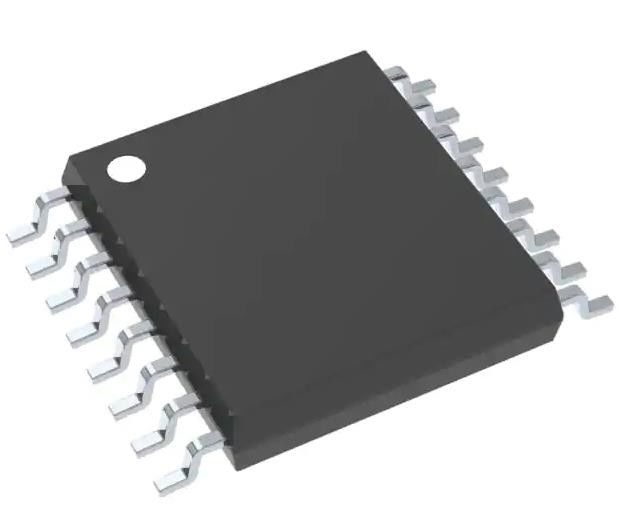

SN74AVCH4T245PWR Electronic IC Chips With 2 Element 2 Bit per Element 3-State
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AVCH4T245PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Series: | 74AVCH | Logic Type: | Translation Transceiver |
|---|---|---|---|
| Number Of Elements: | 2 | Number Of Bits Per Element: | 4 |
| Output Type: | 3-State | Current - Output High, Low: | 12mA, 12mA |
| Voltage - Supply: | 1.2V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
SN74AVCH4T245PWR Electronic IC Chips With 2 Element 2 Bit per Element 3-State
IC TRANSLATION TXRX 3.6V 16TSSOP
Specifications of SN74AVCH4T245PWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Buffers, Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | 74AVCH |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Logic Type | Translation Transceiver |
| Number of Elements | 2 |
| Number of Bits per Element | 4 |
| Input Type | - |
| Output Type | 3-State |
| Current - Output High, Low | 12mA, 12mA |
| Voltage - Supply | 1.2V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | 74AVCH4T245 |
Features of SN74AVCH4T245PWR
* Control Inputs ViH/ViL Levels are Referenced toVccA Voltage
* Fully Configurable Dual-Rail Design Allows EachPort to Operate Over the Full 1.2V to 3.6V Power-Supply Range
* I/Os Are 4.6V Tolerant
* loff Supports Partial Power-Down-Mode Operation
* Bus Hold on Data lnputs Eliminates the Need forExternal pull-up/pull-down Resistors
* Max Data Rates
- 380 Mbps (1.8 V to 3.3 V Translation)
- 200 Mbps (<1.8 V to 3.3 V Translation)
- 200 Mbps (Translate to 2.5 V or 1.8 V)
- 150 Mbps (Translate to 1.5 V)
- 100 Mbps (Translate to 1.2 V)
* Latch-Up Performance Exceeds 100 mA PerJESD 78, Class ll
* ESD Protection Exceeds JESD
- 228000 V Human Body Model (A114-A)
- 200 V Machine Model (A115-A)
- 1000 V Charged-Device Model (C101)
Applications of SN74AVCH4T245PWR
* Personal Electronics
* Industrial
* Enterprise
* Telecom
Environmental & Export Classifications of SN74AVCH4T245PWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
