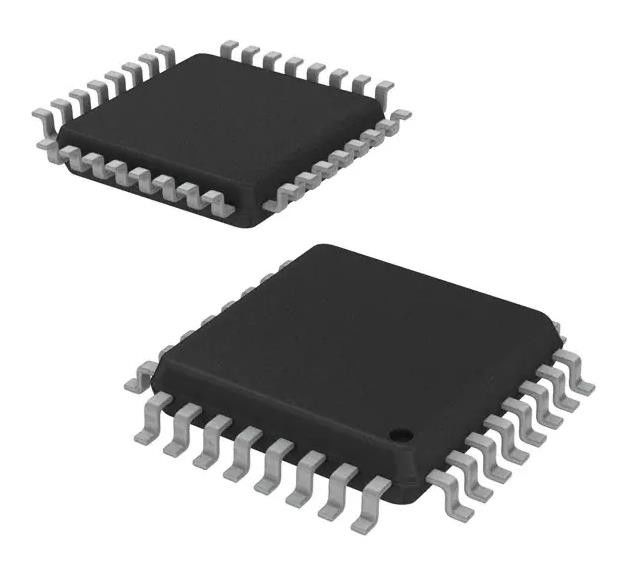

TUSB2046BVFR Electronic IC Chips Controller USB 2.0 USB Interface 32-LQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TUSB2046BVFR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Protocol: | USB | Standards: | USB 2.0 |
|---|---|---|---|
| Voltage - Supply: | 3V ~ 3.6V | Current - Supply: | 40mA |
| Operating Temperature: | 0°C ~ 70°C | Supplier Device Package: | 32-LQFP (7x7) |
| High Light: | TUSB2046BVFR Electronic IC Chips,USB 2.0 Electronic IC Chips |
||
Product Description
TUSB2046BVFR Electronic IC Chips Controller USB 2.0 USB Interface 32-LQFP
IC HUB CONTROLLER USB 32LQFP
Specifications of TUSB2046BVFR
| TYPE | DESCRIPTION |
| Category | Controllers |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Protocol | USB |
| Function | Hub Controller |
| Interface | USB |
| Standards | USB 2.0 |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 40mA |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-LQFP (7x7) |
| Base Product Number | TUSB2046 |
Features of TUSB2046BVFR
• Fully Compliant With the USB Specification as a Full-Speed Hub: TID #30220231
• 32-Pin LQFP (1) Package With a 0.8-mm Terminal Pitch or QFN Package With a 0.5-mm Pin Pitch
• 3.3-V Low-Power ASIC Logic
• Integrated USB Transceivers
• State Machine Implementation Requires No Firmware Programming
• One Upstream Port and Four Downstream Ports
• All Downstream Ports Support Full-Speed and Low-Speed Operations
• Two Power Source Modes
– Self-Powered Mode
– Bus-Powered Mode
• Power Switching and Overcurrent Reporting Is Provided Ganged or Per Port
• Supports Suspend and Resume Operations
• Supports Programmable Vendor ID and Product ID With External Serial EEPROM
• 3-State EEPROM Interface Allows EEPROM Sharing
• Push-Pull Outputs for PWRON Eliminate the Need for External Pullup Resistors
• Noise Filtering on OVRCUR Provides Immunity to Voltage Spikes
• Package Pinout Allows 2-Layer PCB
• Low EMI Emission Achieved by a 6-MHz Crystal Input
• Migrated From Proven TUSB2040 Hub
• Lower Cost Than the TUSB2040 Hub
• Enhanced System ESD Performance
• No Special Driver Requirements; Works Seamlessly With Any Operating System With USB Stack Support
• Supports 6-MHz Operation Through a Crystal Input or a 48-MHz Input Clock
Applications of TUSB2046BVFR
• Computer Systems
• Docking Stations
Environmental & Export Classifications of TUSB2046BVFR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
