TPA2010D1YZFR Amplifier IC 2.5W Electronic IC Chips With 1-Channel
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPA2010D1YZFR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Depop, Differential Inputs, Shutdown, Thermal Protection | Output Type: | 1-Channel (Mono) |
|---|---|---|---|
| Max Output Power X Channels @ Load: | 2.5W X 1 @ 4Ohm | Voltage - Supply: | 2.5V ~ 5.5V |
| Mounting Type: | Surface Mount | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TPA2010D1YZFR Electronic IC Chips,2.5W Electronic IC Chips,TPA2010D1YZFR Amplifier IC |
||
Product Description

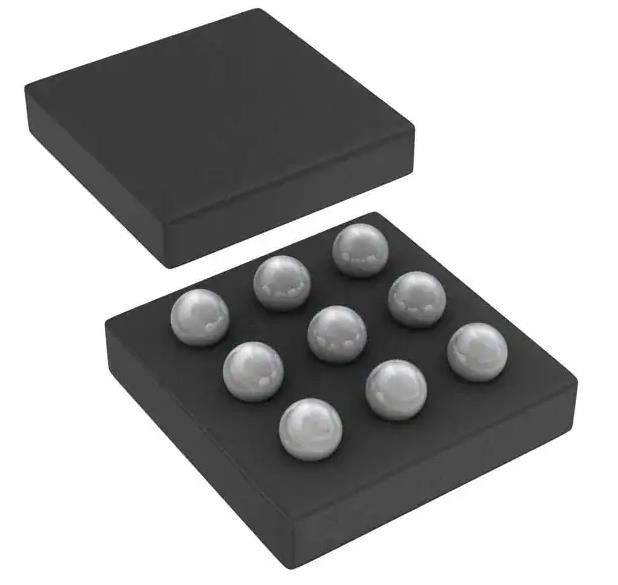

TPA2010D1YZFR Amplifier IC 2.5W With 1-Channel (Mono) Class D 9-DSBGA
IC AMP CLASS D MONO 2.5W 9DSBGA
Specifications of TPA2010D1YZFR
| TYPE | DESCRIPTION |
| Category | Audio Amplifiers |
| Mfr | Texas Instruments |
| Series | NanoFree™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 2.5W x 1 @ 4Ohm |
| Voltage - Supply | 2.5V ~ 5.5V |
| Features | Depop, Differential Inputs, Shutdown, Thermal Protection |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 9-DSBGA |
| Package / Case | 9-UFBGA, DSBGA |
| Base Product Number | TPA2010 |
Features of TPA2010D1YZFR
*Maximum Battery Life and Minimum Heat
-Efficiency with an 8-Q Speaker:
- 88% at 400 mW
- 80% at 100 mW
- 2.8-mA Quiescent Current
- 0.5-A Shutdown Current
*Only Three External Components
-Optimized PWM Output Stage Eliminates LCOutput Filter
-Internally Generated 250-kHz SwitchingFrequency Eliminates Capacitor and Resistor
-lmproved PSRR (-75 dB) and Wide SupplyVoltage (2.5 V to 5.5 V) Eliminates Need for aVoltage Regulator
-Fully Differential Design Reduces RFRectification and Eliminates Bypass Capacitor
-lmproved CMRR Eliminates Two InputCoupling Capacitors
*Die-size ball grid (DSBGA)
-NanoFreeTm Lead-Free (YZF)
-NanoStarTm SnPb (YEF)
Applications of TPA2010D1YZFR
*Wireless or Cellular Handsets and PDAs
*Personal Navigation Devices
*General Portable Audio Devices
*Linear Vibrator Drivers
Environmental & Export Classifications of TPA2010D1YZFR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
