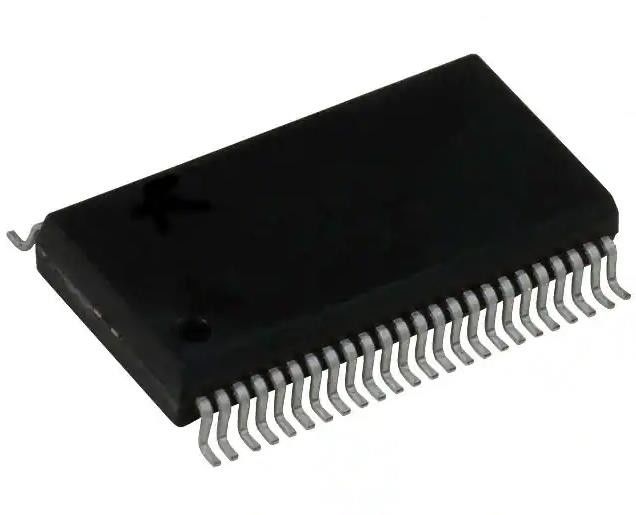

SN75LVDS84ADGGR Electronic IC Chips Components DRIVER 4/0 48TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN75LVDS84ADGGR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Drivers/Receivers: | 4/0 | Voltage - Supply: | 3V ~ 3.6V |
|---|---|---|---|
| Type: | Driver | Mounting Type: | Surface Mount |
| Operating Temperature: | 0°C ~ 70°C (TJ) | Package / Case: | 48-TFSOP (0.240", 6.10mm Width) |
| High Light: | Electronic IC Chips Components,Surface Mount Electronic IC Chips,SN75LVDS84ADGGR |
||
Product Description
SN75LVDS84ADGGR IC Electronic Components DRIVER 4/0 48TSSOP
1/1 Transceiver Half CANbus 8-SOIC
Specifications of SN75LVDS84ADGGR
| Mfr | Texas Instruments |
| Series | FlatLink™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Driver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 4/0 |
| Duplex | - |
| Data Rate | - |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP |
| Base Product Number | 75LVDS84 |
Features of SN75LVDS84ADGGR
* 21:3 Data Channel Compression at up to 196 Million Bytes per Second Throughput
* Suited for SVGA, XGA, or SXGA Data Transmission From Controller to Display With Very Low EM
* Packaged in Thin Shrink Small-Outline Package (TSSOP) With 20 Mil Terminal Pitch
* Consumes Less Than 0.54 mW When Disabled
* Wide Phase-Lock Input Frequency Range: 31 MHz to 75 MHz
* No External Components Required for PLL
* Outputs Meet or Exceed the Requirements of ANSI EIA/TIA-644 Standard
* SSC Tracking Capability of 3% Center Spread at 50-kHz Modulation Frequency
* Improved Replacement for SN75LVDS84 and NSC’s DS90CF363A 3-V Device
* Available in Q-Temp Automotive
High Reliability Automotive Applications
Configuration Control / Print Support
Qualification to Automotive standards
Descriptions of SN75LVDS84ADGGR
The SN75LVDS84A and SN65LVDS84AQ FlatLink transmitters contains three 7-bit parallel-load serial-out shift registers, and four low-voltage differential signaling (LVDS) line drivers in a single integrated circuit. These functions allow 21 bits of single-ended LVTTL data to be synchronously transmitted over 3 balanced-pair conductors for receipt by a compatible receiver, such as the SN75LVDS82 or SN75LVDS82.
Environmental & Export Classifications of SN75LVDS84ADGGR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
