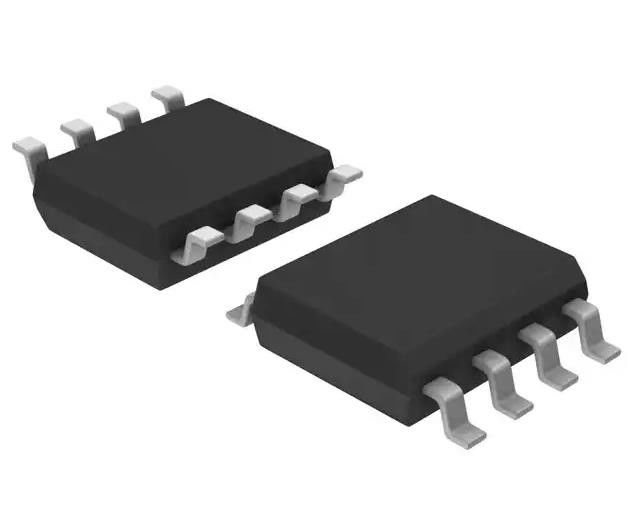

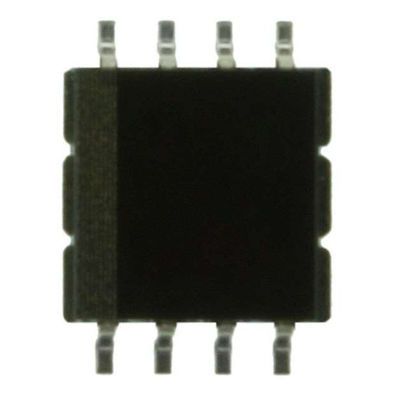

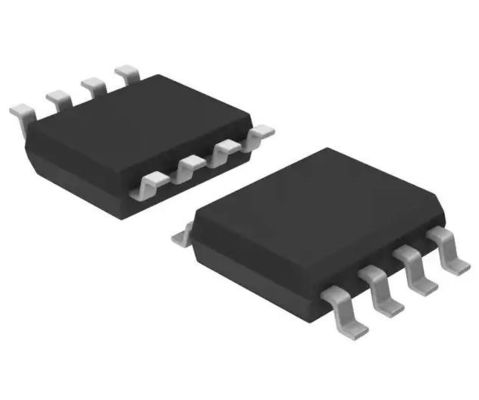

PCA9306DCTR Voltage Level Translator Bidirectional 1 Circuit 2 Channel SM8
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PCA9306DCTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Translator Type: | Voltage Level | Channel Type: | Bidirectional |
|---|---|---|---|
| Voltage - VCCA: | 1.2 V ~ 3.3 V | Voltage - VCCB: | 1.8 V ~ 5.5 V |
| Number Of Circuits: | 1 | Channels Per Circuit: | 2 |
| High Light: | Bidirectional Voltage Level Translator,2 Channel Voltage Level Translator,PCA9306DCTR |
||
Product Description
PCA9306DCTR Voltage Level Translator Bidirectional 1 Circuit 2 Channel SM8
IC TRANSLATOR BIDIRECTIONAL SM8
Specifications of PCA9306DCTR
| TYPE | DESCRIPTION |
| Category | Translators, Level Shifters |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.2 V ~ 3.3 V |
| Voltage - VCCB | 1.8 V ~ 5.5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Open Drain, Push-Pull |
| Data Rate | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Package / Case | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Supplier Device Package | SM8 |
| Base Product Number | PCA9306 |
Features of PCA9306DCTR
• 2-Bit bidirectional translator for SDA and SCL lines in mixed-mode I2C Applications
• I2C and SMBus compatible
• Less than 1.5-ns maximum propagation delay to accommodate standard-mode and fast-mode I2C devices and multiple controllers
• Allows voltage-level translation between
– 1.2-V VREF1 and 1.8-V, 2.5-V, 3.3-V,or 5-V VREF2
– 1.8-V VREF1 and 2.5-V, 3.3-V, or 5-V VREF2
– 2.5-V VREF1 and 3.3-V or 5-V VREF2
– 3.3-V VREF1 and 5-V VREF2
• Provides bidirectional voltage translation with no direction pin
• Low 3.5-Ω ON-state resistance between input and output ports provides less signal distortion
• Open-drain I2C I/O ports (SCL1, SDA1, SCL2, and SDA2)
• 5-V Tolerant I2C I/O ports to support mixed-mode signal operation
• High-impedance SCL1, SDA1, SCL2, and SDA2 pins for EN = low
• Lockup-free operation for isolation when EN = low
• Flow-through pinout for ease of printed-circuitboard trace routing
• Latch-up performance exceeds 100 mA Per JESD 78, class II
• ESD protection exceeds JESD 22
– 2000-V Human-body model (A114-A)
– 1000-V Charged-device model (C101)
Applications of PCA9306DCTR
• I2C, SMBus, PMBus, MDIO, UART, low-speed SDIO, GPIO, and other two-signal interfaces
• Servers
• Routers (telecom switching equipment)
• Personal Computers
• Industrial Automation
Environmental & Export Classifications of PCA9306DCTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
