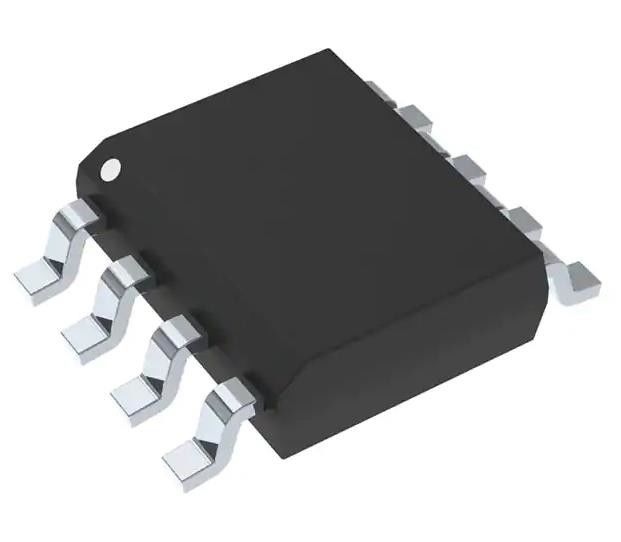

NCV33161DR2G Electronic IC Chips 2 Channel 8SOIC Open Collector

Product Description

 NCV33161DR2G Electronic IC Chips SUPERVISOR 2 CHANNEL 8SOIC


Supervisor Open Drain or Open Collector 2 Channel 8-SOIC. It is integrated circuit.

Specifications of NCV33161DR2G


Features of NCV33161DR2G

• Unique Mode Select Input Allows Channel Programming
• Over, Under, and Window Voltage Detection
• Positive and Negative Voltage Detection
• Fully Functional at 2.0 V for Positive Voltage Sensing and 4.0 V for Negative Voltage Sensing
• Pinned Out 2.54 V Reference with Current Limit Protection
• Low Standby Current
• Open Collector Outputs for Enhanced Device Flexibility
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;

AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant

Introductions of NCV33161DR2G

The MC34161/MC33161 are universal voltage monitors intended or use in a wide variety of voltage sensing applications. These devices offer the circuit designer an economical solution for positive and negative voltage detection. The circuit consists of two comparator channels each with hysteresis, a unique Mode Select Input for channel programming, a pinned out 2.54 V reference, and two open collector outputs capable of sinking in excess of 10 mA. Each comparator channel can be configured as either inverting or noninverting by the Mode Select Input. This allows over, under, and window detection of positive and negative voltages. The minimum supply voltage needed for these devices to be fully functional is 2.0 V for positive voltagesensing and 4.0 V for negative voltage sensing.
