NCP302155MNTWG High Side Low Side Gate Driver IC Non-Inverting 31-PQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LSF0101DRYR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Voltage - VIL, VIH: | 0.7V, 2.65V | Current - Peak Output (Source, Sink): | 2A, 2.5A |
|---|---|---|---|
| Input Type: | Non-Inverting | High Side Voltage - Max (Bootstrap): | 35V |
| Rise / Fall Time (Typ): | 12ns, 6ns | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | Low Side Gate Driver IC,High Side Gate Driver IC,NCP302155MNTWG |
||
Product Description

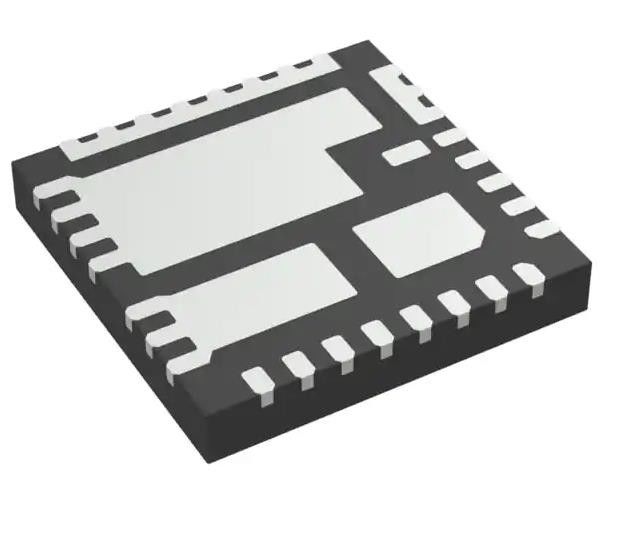

NCP302155MNTWG High-Side or Low-Side Gate Driver IC Non-Inverting 31-PQFN
IC GATE DRVR HI/LOW SIDE PQFN31
Specifications of NCP302155MNTWG
| TYPE | DESCRIPTION |
| Category | Gate Drivers |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) ; Cut Tape (CT) |
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 5.5V |
| Logic Voltage - VIL, VIH | 0.7V, 2.65V |
| Current - Peak Output (Source, Sink) | 2A, 2.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 35 V |
| Rise / Fall Time (Typ) | 12ns, 6ns |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 31-PowerWFQFN |
| Supplier Device Package | 31-PQFN (5x5) |
| Base Product Number | NCP302155 |
Features of NCP302155MNTWG
• Capable of Average Currents up to 55 A
• Capable of Switching at Frequencies up to 2 MHz
• Compatible with 3.3 V or 5 V PWM Input
• Responds Properly to 3−level PWM Inputs
• Option for Zero Cross Detection with 3−level PWM
• Internal Bootstrap Diode
• Undervoltage Lockout
• Supports Intel® Power State 4
• Thermal Warning output
• Thermal Shutdown
Applications of NCP302155MNTWG
• Notebook, Tablet PC and Ultrabook
• Servers and Workstations, V−Core and Non−V−Core DC−DC Converters
• Desktop and All−in−One Computers, V−Core and Non−V−Core DC−DC Converters
• High−Current DC−DC Point−of−Load Converters
• Small Form−Factor Voltage Regulator Modules
Environmental & Export Classifications of NCP302155MNTWG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
