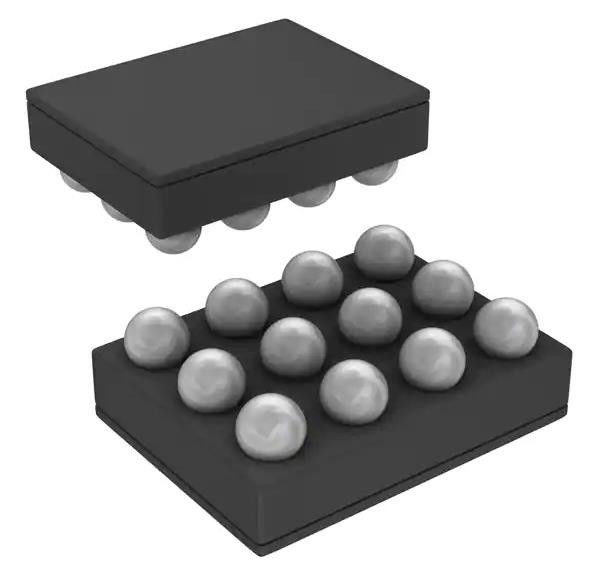

LP5562TMX/NOPB 4 Output Linear Electronic IC Chips 12-DSBGA LED Driver IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LP5562TMX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 4 | Voltage - Supply (Min): | 2.7V |
|---|---|---|---|
| Voltage - Supply (Max): | 5.5V | Voltage - Output: | - |
| Current - Output / Channel: | 25.5mA | Frequency: | 256Hz, 558Hz |
| High Light: | Linear Electronic IC Chips,4 Output Electronic IC Chips,12-DSBGA LED Driver IC |
||
Product Description
LP5562TMX/NOPB LED Driver IC 4 Output Linear I²C Dimming 25.5mA 12-DSBGA
IC LED DRV LIN I2C 12DSBGA
Specifications of LP5562TMX/NOPB
| TYPE | DESCRIPTION |
| Category | LED Drivers |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | Yes |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 25.5mA |
| Frequency | 256Hz, 558Hz |
| Dimming | I²C |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFBGA, DSBGA |
| Supplier Device Package | 12-DSBGA |
| Base Product Number | LP5562 |
Features of LP5562TMX/NOPB
• Four Independently Programmable LED Outputs With 8-Bit Current Setting
(From 0 mA to 25.5 mA With 100-μA Steps) and 8-Bit PWM Control
• Typical LED Output Saturation Voltage 60 mV and Current Matching 1%
• Flexible PWM Control for LED Outputs
• Automatic Power-Save Mode With External Clock
• Three Program Execution Engines With Flexible Instruction Set
• Autonomous Operation With Program Execution Engines
• SRAM Program Memory for Lighting Pattern Programs
• DSBGA 12-Pin Package, 0.4-mm Pitch
Applications of LP5562TMX/NOPB
• Fun Lights
• Indicator Lights
• Keypad RGB Backlighting and Phone Cosmetics
Environmental & Export Classifications of LP5562TMX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
