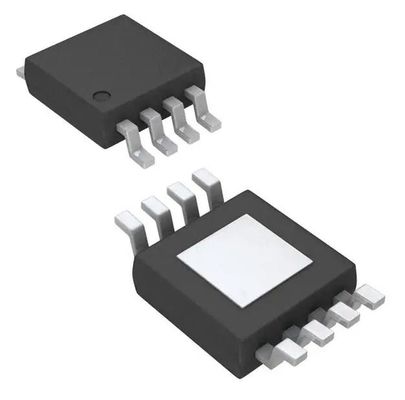

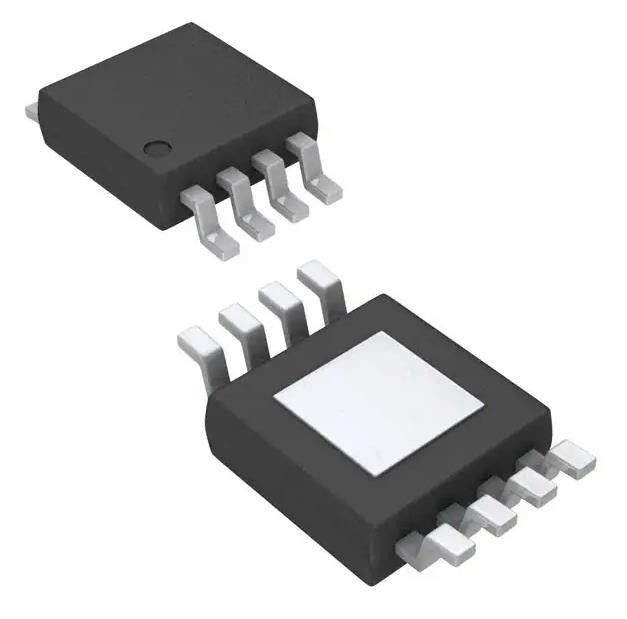

LM3407MYX/NOPB LED Driver IC 1 Output DC Regulator 350mA 8-HVSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3407MYX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply (Min): | 4.5V | Voltage - Supply (Max): | 30 V |
|---|---|---|---|
| Current - Output / Channel: | 350mA | Frequency: | 300kHz ~ 1MHz |
| Dimming: | PWM | Operating Temperature: | -40°C ~ 125°C (TJ) |
Product Description
LM3407MYX/NOPB LED Driver IC 1 Output DC Regulator 350mA 8-HVSSOP
LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) PWM Dimming 350mA 8-HVSSOP
Specifications of LM3407MYX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | DC DC Regulator |
| Topology | Step-Down (Buck) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 30V |
| Voltage - Output | - |
| Current - Output / Channel | 350mA |
| Frequency | 300kHz ~ 1MHz |
| Dimming | PWM |
| Applications | Lighting |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-HVSSOP |
| Base Product Number | LM3407 |
Features of LM3407MYX/NOPB
• Input Operating Range 4.5 V to 30 V
• Output Voltage Range: 0.1 VIN to 0.9 VIN
• Accurate Constant Current Output
• Independent Device Enable (CMOS Compatible) and PWM Dimming Control
• Converter Switching Frequency Adjustable From 300 kHz to 1 MHz
• No External Control Loop Compensation Required
• Supports Ceramic and Low ESR Output Capacitors
• Input Undervoltage Lockout (UVLO)
• Thermal Shutdown Protection
• MSOP-8 PowerPAD Package
Applications of LM3407MYX/NOPB
• LED Drivers
• Constant Current Sources
• Automotive Lighting
• General Illumination
• Industrial Lighting
Environmental & Export Classifications of LM3407MYX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
