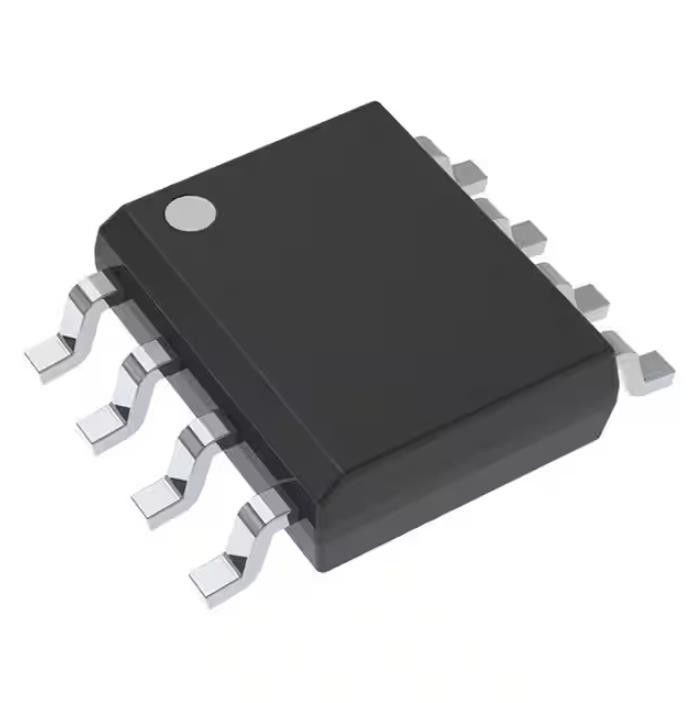

UCC2813QDR-3Q1 Power Switch Ics Ic Reg Ctrlr Mult Topology 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UCC2813QDR-3Q1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Output Type: | Active | Output Type: | Transistor Driver |
|---|---|---|---|
| Function: | Step-Up, Step-Up/Step-Down | Output Configuration: | Positive |
| Topology: | Boost, Flyback, Forward Converter | Number Of Outputs: | 1 |
| Output Phases: | 1 | Voltage - Supply (Vcc/Vdd): | 3.6V ~ 12V |
Product Description
UCC2813QDR-3Q1 Power Switch Ics Ic Reg Ctrlr Mult Topology 8soic
Boost, Flyback, Forward Converter Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 8-SOIC
Specifications of UCC2813QDR-3Q1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| DC DC Switching Controllers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, Forward Converter |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 3.6V ~ 12V |
| Frequency - Switching | - |
| Duty Cycle (Max) | 99% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | UCC2813 |
Features of UCC2813QDR-3Q1
• Qualified for automotive applications
• AEC-Q100 qualified with the following results:
– Device temperature grade 1: –40°C to 125°C TA
– Device HBM classification level 2: 2 kV
– Device CDM classification level C5: 1000 V
• 100-µA typical starting supply current
• 500-µA typical operating supply current
• Operation to 1 MHz
• Internal soft start
• Internal fault soft start
• Internal leading-edge blanking of the currentsense signal
• 1-A totem-pole output
• 70-ns typical response from current-sense to gatedrive output
• 1.5% tolerance voltage reference
• Same pinout as the UCC3802 device, UC3842 device, and UC3842A device families
Applications of UCC2813QDR-3Q1
• Automotive power supplies
• Auxiliary power supply for automotive hybrid and electric vehicles
• AC and DC power supplies
Environmental & Export Classifications of UCC2813QDR-3Q1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
