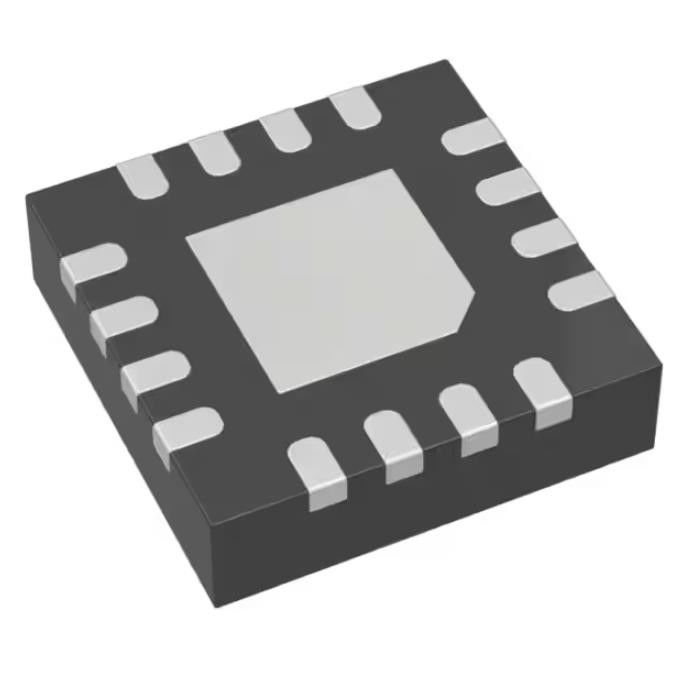

SPDTX4 450MOHM 16VQFN Power Switch ICs TS3A44159RGTR 4 Circuit
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TS3A44159RGTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Switch Circuit: | Active | Switch Circuit: | SPDT |
|---|---|---|---|
| Multiplexer/Demultiplexer Circuit: | 2:01 | Number Of Circuits: | 4 |
| On-State Resistance (Max): | 450mOhm | Channel-to-Channel Matching (ΔRon): | 50mOhm |
| Voltage - Supply, Single (V+): | 1.65V ~ 4.3V | Switch Time (Ton, Toff) (Max): | 23ns, 32ns |
| High Light: | TS3A44159RGTR,16VQFN Power Switch ICs,450MOHM Power Switch IC |
||
Product Description
TS3A44159RGTR Power Switch Ics Ic Switch Spdtx4 450mohm 16vqfn
4 Circuit IC Switch 2:1 450mOhm 16-VQFN (3x3)
Specifications of TS3A44159RGTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:01 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 450mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 23ns, 32ns |
| -3db Bandwidth | 35MHz |
| Charge Injection | 139pC |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -73dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| Base Product Number | TS3A44159 |
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers |
Features of TS3A44159RGTR
• Specified Break-Before-Make Switching
• Low ON-State Resistance (<0.5 Ω)
• Control Inputs Are 1.8-V Logic Compatible
• Low Charge Injection
• Excellent ON-State Resistance Matching
• Low Total Harmonic Distortion (THD)
• 1.65-V to 4.3-V Single-Supply Operation
• Latch-Up Performance Exceeds 100 mAPer JESD 78, Class II
• ESD Performance Tested Per JESD 22
– ±2000-V Human-Body Model(A114-B, Class II)
– ±1000-V Charged-Device Model (C101)
Applications of TS3A44159RGTR
• Cell Phones
• PDAs
• Portable Instrumentation
• Audio and Video Signal Routing
• Low-Voltage Data-Acquisition Systems
• Communication Circuits
• Modems
• Hard Drives
• Computer Peripherals
• Wireless Pins and Peripherals
Environmental & Export Classifications of TS3A44159RGTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
