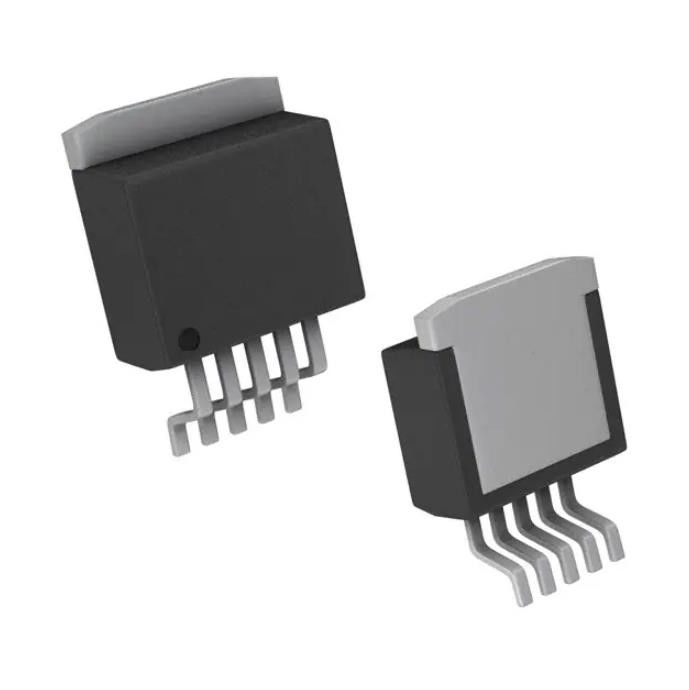

TPS79601KTTR Power Switch ICs DDPAK IC REG LIN POS ADJ 1A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS79601KTTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Output Configuration: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Adjustable | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 1.2V |
| Voltage - Output (Max): | 5.5V | Current - Output: | 1A |
| High Light: | TPS79601KTTR,DDPAK IC REG LIN,IC REG LIN POS ADJ 1A |
||
Product Description
TPS79601KTTR Power Switch Ics Ic Reg Lin Pos Adj 1a Ddpak 296-46253-6-ND
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A DDPAK/TO-263-5
Specifications of TPS79601KTTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | - |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 385 µA |
| PSRR | 59dB ~ 42dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA |
| Supplier Device Package | DDPAK/TO-263-5 |
| Base Product Number | TPS79601 |
Features of TPS79601KTTR
• 1-A Low-Dropout Regulator With Enable
• Available in Fixed and Adjustable (1.2 V to 5.5 V)Versions
• High PSRR (53 dB at 10 kHz)
• Ultralow-Noise (40 μVRMS, TPS79630)
• Fast Start-Up Time (50 μs)
• Stable With a 1-μF Ceramic Capacitor
• Excellent Load and Line Transient Response
• Very Low Dropout Voltage (250 mV at Full Load,TPS79630)
• 3 × 3 VSON PowerPAD™, SOT223-6, andTO-263 Packages
Applications of TPS79601KTTR
• RF: VCOs, Receivers, ADCs
• Audio
• Bluetooth® , Wireless LAN
• Cellular and Cordless Telephones
• Handheld Organizers, PDAs
Environmental & Export Classifications of TPS79601KTTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
