17mA AEC-Q100 Automotive PMIC Power Switch ICs TPS65941111RWERQ1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS65941111RWERQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | Automotive, AEC-Q100 | Package: | Tape & Reel (TR) |
|---|---|---|---|
| Product Status: | Active | Applications: | Automotive |
| Current - Supply: | 17mA | Voltage - Supply: | 2.8V ~ 5.5V |
| Operating Temperature: | -40°C ~ 125°C (TA) | Mounting Type: | Surface Mount, Wettable Flank |
| High Light: | TPS65941111RWERQ1,AEC Q100 Automotive PMIC,17mA Automotive PMIC |
||
Product Description
TPS65941111RWERQ1 Power Switch Ics 296-Tps65941111rwerq1tr-Nd

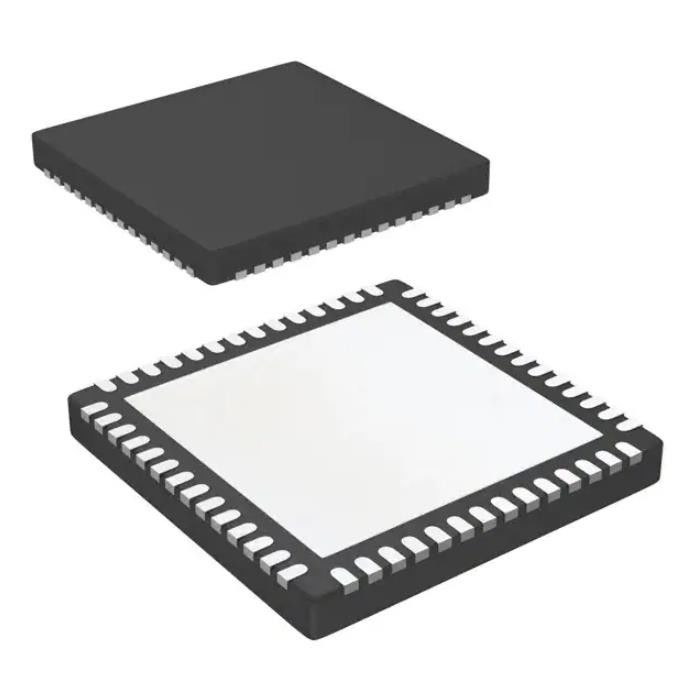

Automotive PMIC 56-VQFNP (8x8)
Specifications of TPS65941111RWERQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Management - Specialized | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Applications | Automotive |
| Current - Supply | 17mA |
| Voltage - Supply | 2.8V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 56-VFQFN Exposed Pad |
| Supplier Device Package | 56-VQFNP (8x8) |
| Base Product Number | TPS65941111 |
Features of TPS65941111RWERQ1
• Qualified for automotive applications
• AEC-Q100 qualified with the following results:
– Device operates from 3 V to 5.5 V input supply
– Device temperature grade 1: –40°C to +125°C ambient operating temperature range
– Device HBM classification level 2
– Device CDM classification level C4A
• Functional Safety-Compliant
– Developed for functional safety applications
– Documentation available to aid ISO 26262 system design up to ASIL-D
– Documentation available to aid IEC 61508 system design up to SIL-3
– Systematic capability up to ASIL-D
– Hardware integrity up to ASIL-D
– Input supply voltage monitor and over-voltage protection
– Under/overvoltage monitors and over-current
monitors on all output supply rails
– Watchdog with selectable trigger / Q&A mode
– Two error signal monitors (ESMs) with
selectable level / PWM mode
– Thermal monitoring with high temperature warning and thermal shutdown
– Bit-integrity (CRC) error detection on internal configuration registers and non-volatile memory(NVM)
• Low-power consumption
– 2 μA typical shutdown current
– 7 μA typical in back up supply only mode
– 20 μA typical in low power standby mode
• Five step-down switched-mode power supply(BUCK) regulators:
– 0.3 V to 3.34 V output voltage range in 5, 10, or20-mV steps
– One with 4 A, three with 3.5 A, and one with 2A output current capability
– Flexible multi-phase capability for four BUCKs:up to 14 A output current from a single rail
– Short-circuit and over-current protection
– Internal soft-start for in-rush current limitation
– 2.2 MHz / 4.4 MHz switching frequency
– Ability to synchronize to external clock input
• Three low-dropout (LDO) linear regulators with configurable bypass mode
– 0.6 V to 3.3 V output voltage range with 50-mV steps in linear regulation mode
Applications of TPS65941111RWERQ1
• Automotive infotainment and digital cluster, navigation systems, telematics, body electronics and lighting
• Advanced driver assistance system (ADAS)
• Industrial control and automation
Environmental & Export Classifications of TPS65941111RWERQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | Not applicable |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
