TPS65261RHBR IC REG BUCK ADJ 3A/2A TRPL 32VQFN Buck Switching Regulator IC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS65261RHBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Function: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 3 |
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 18V |
| High Light: | TPS65261RHBR IC REG,IC REG BUCK ADJ 3A,IC REG BUCK ADJ 2A |
||
Product Description
TPS65261RHBR Power Switch Ics Ic Reg Bck Adj 3a/2a Trpl 32vqfn

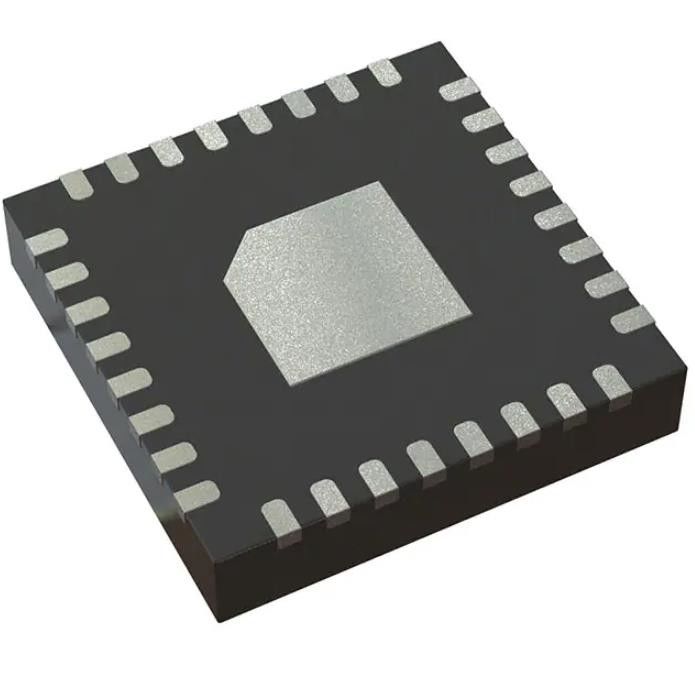

Buck Switching Regulator IC Positive Adjustable 0.6V 3 Output 3A, 2A 32-VFQFN Exposed Pad
Specifications of TPS65261RHBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 18V |
| Current - Output | 3A, 2A |
| Frequency - Switching | 250kHz ~ 2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | TPS65261 |
Features of TPS65261RHBR
• Operating Input Supply Voltage Range (4.5 V to 18 V)
• Feedback Reference Voltage 0.6V±1%
• Maximum Continuous Output Current 3A/2A/2A
• Adjustable Clock Frequency from 250kHz to 2MHz
• Dedicated Enable and Soft Start Pins for Each Buck
• Automatic Power-up/Power-down Sequence
• Pulse Skipping Mode (PSM) at Light Load (TPS65261 only)
• Output Voltage Power Good Indicator
• Input Voltage Power Failure Indicator
• Thermal Overloading Protection
Applications of TPS65261RHBR
• DTV
• Set Top Boxes
• Home Gateway and Access Point Networks
• Wireless Routers
• Surveillance
• POS Machine
Environmental & Export Classifications of TPS65261RHBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
