IGBT SOT23-5 Low Side Gate Driver IC 4A UCC27519DBVR Non Inverting
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | UCC27519DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Digi-Key Programmable: | Active | Digi-Key Programmable: | Not Verified |
|---|---|---|---|
| Driven Configuration: | Low-Side | Channel Type: | Single |
| Number Of Drivers: | 1 | Gate Type: | IGBT, N-Channel MOSFET |
| Voltage - Supply: | 4.5V ~ 18V | Current - Peak Output (Source, Sink): | 4A, 4A |
| High Light: | SOT23-5 Low Side Gate Driver IC,UCC27519DBVR,IGBT Low Side Gate Driver IC |
||
Product Description
UCC27519DBVR Power Switch Ics Ic Gate Drvr Low-Side Sot23-5
UCC27519DBVR Power Switch Ics Ic Gate Drvr Low-Side Sot23-5

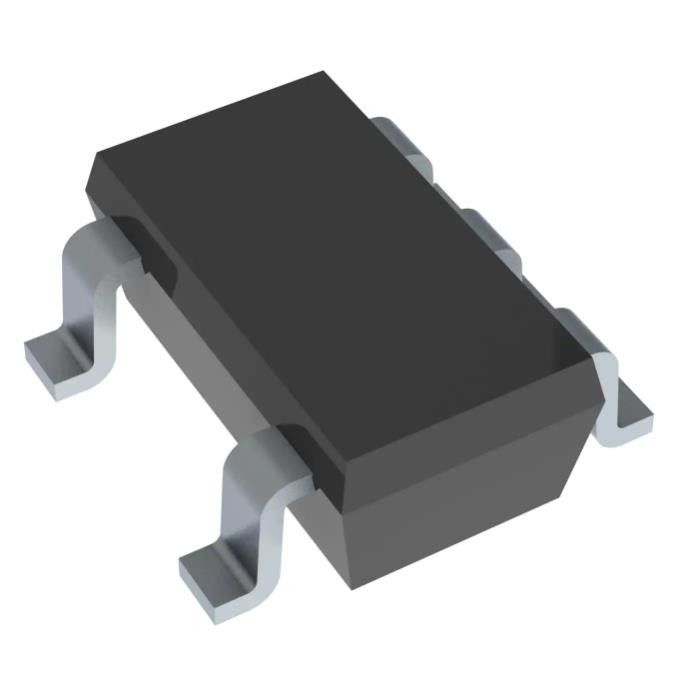

Low-Side Gate Driver IC Non-Inverting SOT-23-5
Specifications of UCC27519DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Non-Inverting |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Operating Temperature | -40°C ~ 140°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | UCC27519 |
Features of UCC27519DBVR
• Low-Cost, Gate-Driver Device Offering Superior Replacement of NPN and PNP Discrete Solutions
• Pin-to-Pin Compatible With TI's TPS2828 and TPS2829 devices
• 4-A Peak Source and 4-A Peak Sink Symmetrical Drive
• Fast Propagation Delays (17-ns Typical)
• Fast Rise and Fall Times (8-ns and 7-ns Typical)
• 4.5-V to 18-V Single Supply Range
• Outputs Held Low During VDD UVLO (Ensures Glitch-Free Operation at Power Up and Power Down)
• CMOS Input Logic Threshold (Function of Supply Voltage With Hysteresis)
• Hysteretic Logic Thresholds for High Noise Immunity
• EN Pin for Enable Function (Allowed to Be No Connect)
• Output Held Low when Input Pins are Floating
• Input Pin Absolute Maximum Voltage Levels Not Restricted by VDD Pin Bias Supply Voltage
• Operating Temperature Range of –40°C to 140°C
• 5-Pin DBV Package (SOT-23)
Applications of UCC27519DBVR
• Switched-Mode Power Supplies
• DC-DC Converters
• Companion Gate Driver Devices for Digital Power Controllers
• Solar Power, Motor Control, UPS
• Gate Driver for Emerging Wide Band-Gap Power Devices (Such as GaN)
Environmental & Export Classifications of UCC27519DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
