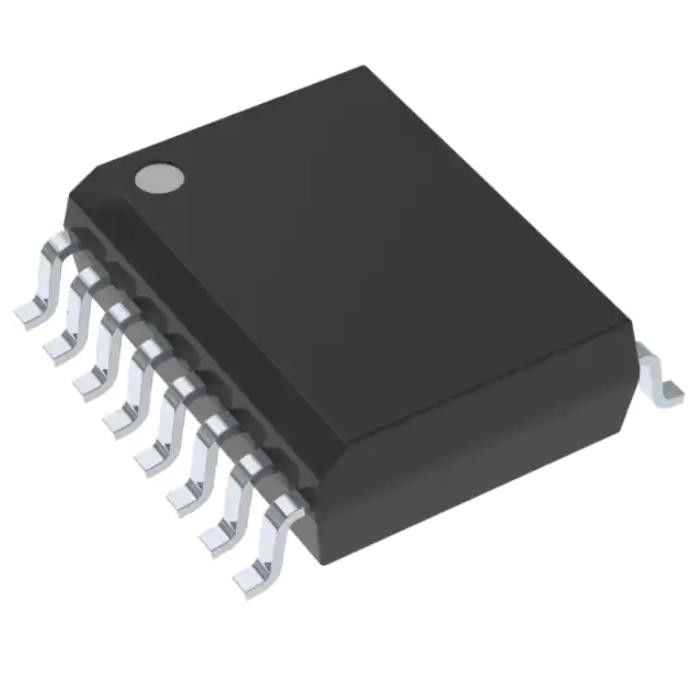

UCC12040DVER Power Switch Ics Dc Dc Converter 3.3v 5v 500mw 6 Weeks
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
Specifications of UCC12040DVER
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 3.3V, 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 140mA, 100mA |
| Power (Watts) | 500 mW |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Laboratory, Medical |
| Features | - |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Efficiency | 60% |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Size / Dimension | 0.41" L x 0.30" W x 0.10" H (10.3mm x 7.5mm x 2.7mm) |
| Supplier Device Package | 16-SOIC |
| Control Features | Enable, Active High |
| Approval Agency | CQC, TUV, UL, VDE |
| Base Product Number | UCC12040 |
Features of UCC12040DVER
• High-density DC/DC module with optimized integrated transformer technology
• Input voltage range: 4.5 V to 5.5 V
• Output voltages (selectable): 5.4 V, 5.0 V, 3.7 V, 3.3 V
• Output power: 500 mW
• Peak efficiency: 60%
• Line regulation (typical): 1%
• Load regulation (typical): 1.5%
• Meets CISPR32 Class B EMI limits without ferrite beads on a 2-layer PCB
• Spread spectrum modulation (SSM)
• Robust isolation barrier:
– Isolation rating: 3 kVRMS
– Surge capability: 6.5 kVPK
– Working voltage: 850 VRMS
– CMTI (typical): ±100 V/ns
• Short circuit recovery
• Thermal shutdown
• 16-pin wide-body SOIC package with > 8-mm creepage and clearance
• Extended temperature range: –40°C to 125°C
• Safety-related certifications:
– 5657-VPK basic isolation per DIN V VDE V 0884-11:2017- 01
– 3000-VRMS isolation for 1 minute per UL 1577
– UL certification per IEC 60950-1, IEC 62368- 1 and IEC 60601-1 end equipment standards
– CQC approval per GB4943.1-2011
Applications of UCC12040DVER
• PLC analog input & output modules
• Grid protection relays & smart breakers
• Medical patient monitors
• Isolated bias for digital isolators
• Isolated bias for RS-485/RS-422/CAN transceivers
• Isolated bias for voltage and current sensors
Environmental & Export Classifications of UCC12040DVER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
