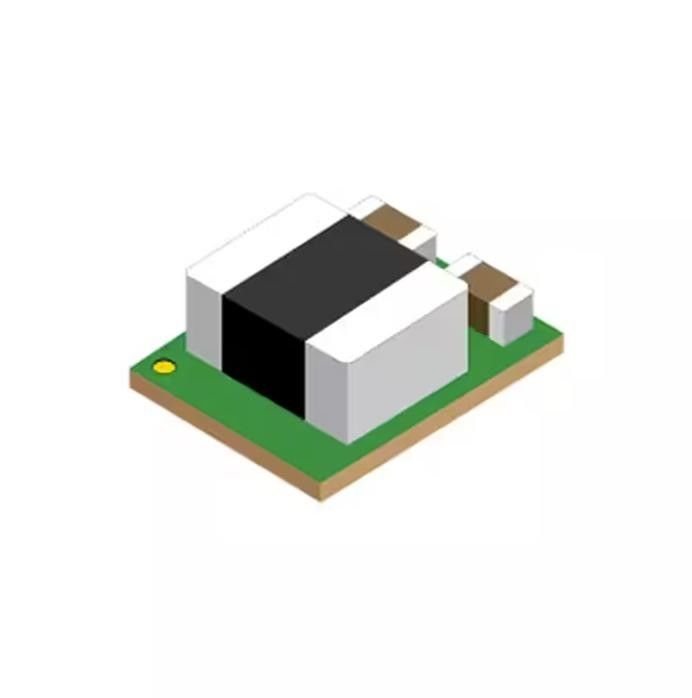

TPSM82822SILR Power Switch Ics 5.5V Input 2A Step Down Module
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPSM82822SILR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Adjustable Output | Current - Output (Max) Applications: | 2A |
|---|---|---|---|
| Applications: | ITE (Commercial) | Operating Temperature: | -40°C ~ 125°C |
| Efficiency: | 95% | Mounting Type: | Surface Mount |
| Package / Case: | 10-LDFN Exposed Pad, Module | Size / Dimension: | 0.15" L X 0.12" W X 0.06" H (3.8mm X 3.0mm X 1.6mm) |
| High Light: | TPSM82822SILR,5.5V 2A Power Switch Ics,5.5V TPSM82822SILR |
||
Product Description
TPSM82822SILR Power Switch Ics 5.5-V Input, 2-A Step-Down Module
TPSM82822SILR Power Switch Ics 5.5-V Input, 2-A Step-Down Module
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 4V 2A 2.4V - 5.5V Input
Specifications of TPSM82822SILR
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Texas Instruments |
| Series | MicroSip™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.4V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.6 ~ 4V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2A |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 10-LDFN Exposed Pad, Module |
| Size / Dimension | 0.15" L x 0.12" W x 0.06" H (3.8mm x 3.0mm x 1.6mm) |
| Supplier Device Package | 10-uSIP (3.8x3) |
| Control Features | - |
| Approval Agency | - |
| Base Product Number | TPSM82822 |
Features of TPSM82822SILR
• 1.1-mm profile MicroSiP™ power module
• CISPR 11 class B compliant
• Up to 95% efficiency
• 2.4-V to 5.5-V input voltage range
• 0.6-V to 4-V adjustable output voltage
• Fixed output voltages available: 1.2-V, 1.8-V, 2.5-V and 3.3-V
• 4-μA operating quiescent current
• DCS-control topology
• Power save mode option available for light load efficiency
• Forced-PWM option available for CCM operation
• 100% duty cycle for lowest dropout
• Hiccup short circuit protection
• Output discharge
• Power good output with window comparator
• Integrated soft start-up
• Overtemperature protection
• PSPICE models available for: TPSM82821, TPSM82822 and TPSM82823
• 2.0-mm × 2.5-mm × 1.1-mm 10-pin μSiL package
• 12 mm2 total solution size (for the fixed output voltage versions)
Applications of TPSM82822SILR
• Optical modules
• Machine vision
• Industrial PCs
• PLCs
• Wired Networking
Environmental & Export Classifications of TPSM82822SILR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
