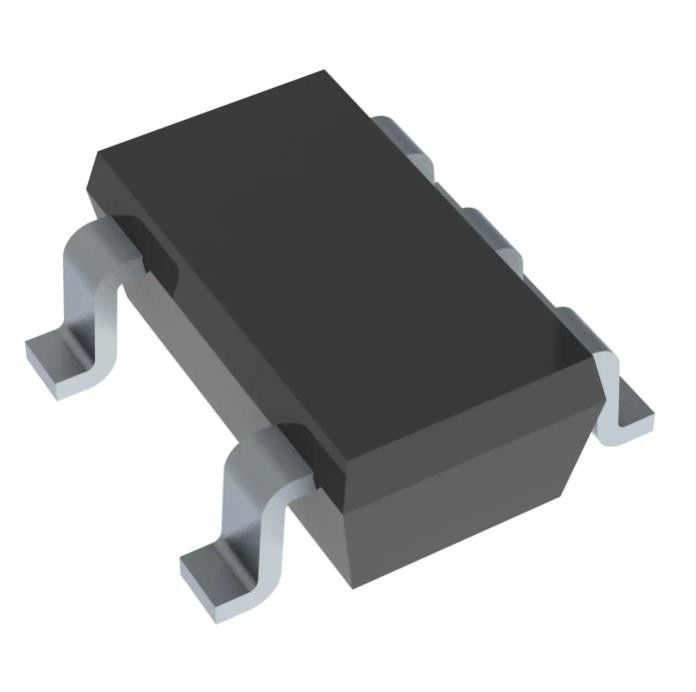

TPS7B6950DBVR Power Switch Ics Ic Reg Linear 5v 150ma Sot23-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7B6950DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Output Configuration: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Fixed | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 40V | Voltage - Output (Min/Fixed): | 5V |
| Voltage Dropout (Max): | 0.8V @ 100mA | Current - Output: | 150mA |
Product Description
TPS7B6950DBVR Power Switch Ics Ic Reg Linear 5v 150ma Sot23-5
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA SOT-23-5
Specifications of TPS7B6950DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 25 µA |
| PSRR | 60dB (100Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS7B6950 |
Features of TPS7B6950DBVR
• 4-V to 40-V Wide VI Input Voltage Range With up to 45-V Transient
• Maximum Output Current: 150 mA
• Low Quiescent Current (IQ):
– 15 µA Typical at Light Loads
– 25 µA Maximum Under Full Temperature
• 450-mV Typical Low Dropout Voltage at 100 mA Load Current
• 10-mV Line Regulation Maximum
• 20-mV Load Regulation Maximum
• Stable With Low-ESR Ceramic Output Capacitor (2.2 µF to 100 µF)
• Fixed 3.3-V and 5-V Output Voltage Options
• Integrated Fault Protection:
– Thermal Shutdown
– Short-Circuit Protection
• Packages:
– 5-Pin SOT-23 Package
– 4-Pin SOT-223 Package
Applications of TPS7B6950DBVR
• E-meters, Water Meters and Gas Meters
• Appliances and White Goods
• Fire Alarm, Smoke Detector
• Medical, Health, and Fitness Applications
Environmental & Export Classifications of TPS7B6950DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
