TPS7A7200RGWR Power Switch Ics Ic Reg Lin Pos Adj 2a 20vqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A7200RGWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Output Configuration: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Adjustable (Fixed) | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 6.5V | Voltage - Output (Min/Fixed): | 0.9V |
| Voltage - Output (Max): | 5V | Voltage Dropout (Max): | 0.47V @ 2A |
Product Description
TPS7A7200RGWR Power Switch Ics Ic Reg Lin Pos Adj 2a 20vqfn

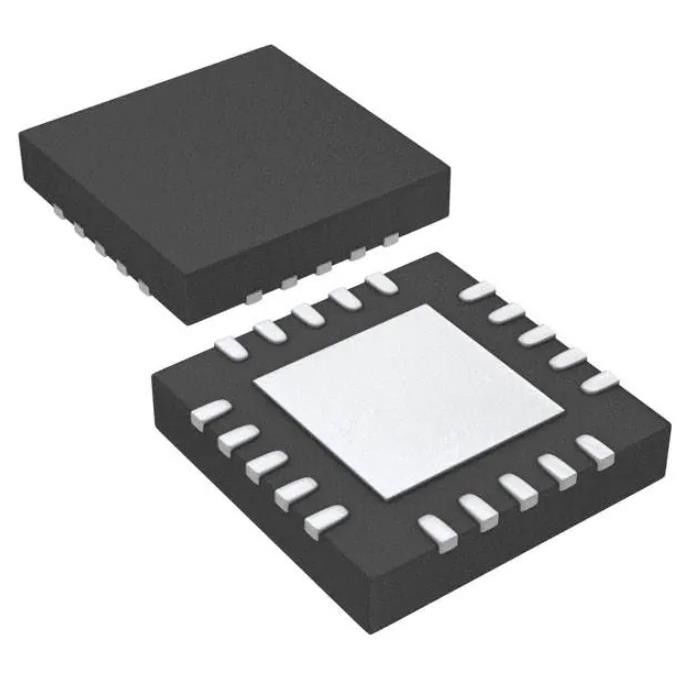

Linear Voltage Regulator IC Positive Adjustable (Fixed) 1 Output 2A 20-VQFN (5x5)
Specifications of TPS7A7200RGWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.47V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 4 mA |
| PSRR | - |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-VQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (5x5) |
| Base Product Number | TPS7A7200 |
Features of TPS7A7200RGWR
• Low-Dropout Voltage: 180 mV at 2 A
• VIN Range: 1.5 V to 6.5 V
• Configurable Fixed VOUT Range: 0.9 V to 3.5 V
• Adjustable VOUT Range: 0.9 V to 5 V
• Very Good Load- and Line-Transient Response
• Stable With Ceramic Output Capacitor
• 1.5% Accuracy Overline, Overload, and Overtemperature
• Programmable Soft Start
• Power Good (PG) Output
• 3-mm × 3-mm QFN-16 and 5-mm × 5-mmVQFN-20 Packages
Applications of TPS7A7200RGWR
• Wireless Infrastructure: SerDes, FPGA, DSP™
• RF Components: VCO, ADC, DAC, LVDS
• Set-Top Boxes: Amplifier, ADC, DAC, FPGA, DSP
• Wireless LAN, Bluetooth®
• PCs and Printers
• Audio and Visual
Environmental & Export Classifications of TPS7A7200RGWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
