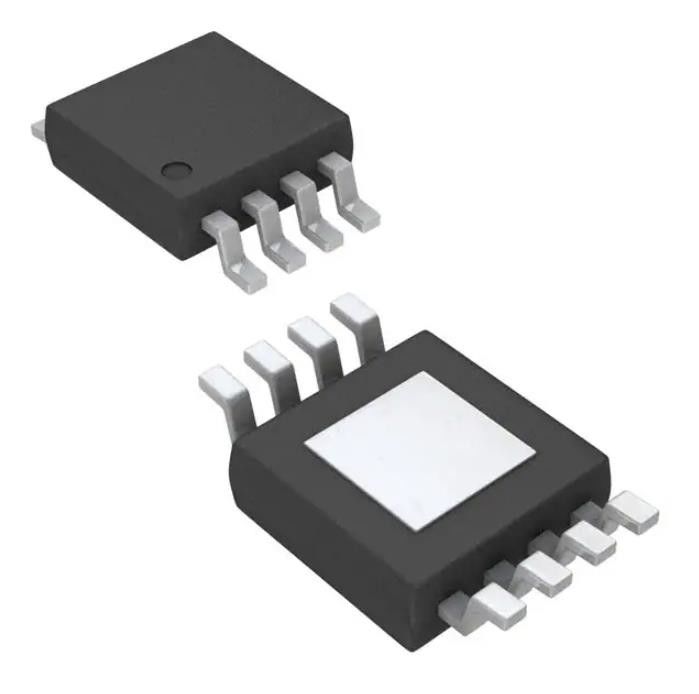

TPS7A4101DGNR Power Switch Ics Ic Reg Lin Pos Adj 50ma 8hvssop
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A4101DGNR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Output Configuration: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Adjustable | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 50V | Voltage - Output (Min/Fixed): | 1.175V |
| Voltage - Output (Max): | 48V | Voltage Dropout (Max): | 1.3V @ 50mA |
Product Description
TPS7A4101DGNR Power Switch Ics Ic Reg Lin Pos Adj 50ma 8hvssop
Linear Voltage Regulator IC Positive Adjustable 1 Output 50mA 8-HVSSOP
Specifications of TPS7A4101DGNR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 50V |
| Voltage - Output (Min/Fixed) | 1.175V |
| Voltage - Output (Max) | 48V |
| Voltage Dropout (Max) | 1.3V @ 50mA |
| Current - Output | 50mA |
| Current - Quiescent (Iq) | 65 µA |
| PSRR | 65dB (100Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-HVSSOP |
| Base Product Number | TPS7A4101 |
Features of TPS7A4101DGNR
• Wide Input Voltage Range: 7 V to 50 V
• Accuracy:
– Nominal: 1%
– Over Line, Load, and Temperature: 2.5%
• Low Quiescent Current: 25 µA
• Quiescent Current at Shutdown: 4.1 µA
• Maximum Output Current: 50 mA
• CMOS Logic-Level-Compatible Enable Pin
• Adjustable Output Voltage: about 1.175 V to 48 V
• Stable with Ceramic Capacitors:
– Input Capacitance: ≥ 1 µF
– Output Capacitance: ≥ 4.7 µF
• Dropout Voltage: 290 mV
• Built-In Current Limit and Thermal Shutdown Protection
• Package: High Thermal Performance HVSSOP-8 PowerPAD™
• Operating Temperature Range: –40°C to 125°C
Applications of TPS7A4101DGNR
• Microprocessors, Microcontrollers Powered by Industrial Busses with High Voltage Transients
• Industrial Automation
• Telecom Infrastrucure
• Automotive
• LED Lighting
• Bias Power Supplies
Environmental & Export Classifications of TPS7A4101DGNR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
