300ma Linear Voltage Regulator IC Ultra Low Noise Low Iq TPS7A2033PYCJR
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A2033PYCJR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage Dropout (Max) Current - Output: | 0.14V @ 300mA | Current - Output: | 300mA |
|---|---|---|---|
| Current - Quiescent (Iq): | 15 µA | PSRR: | 65dB ~ 40dB (100Hz ~ 1MHz) |
| Control Features: | Enable, Soft Start | Protection Features: | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature: | -40°C ~ 125°C (TJ) | Mounting Type: | Surface Mount |
| High Light: | 300ma Linear Voltage Regulator IC,TPS7A2033PYCJR,300ma linear regulator ic |
||
Product Description
TPS7A2033PYCJR Power Switch Ics 300-Ma, Ultra-Low-Noise, Low-Iq,
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 4-DSBGA (0.6x0.6)
Specifications of TPS7A2033PYCJR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.14V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 15 µA |
| PSRR | 65dB ~ 40dB (100Hz ~ 1MHz) |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

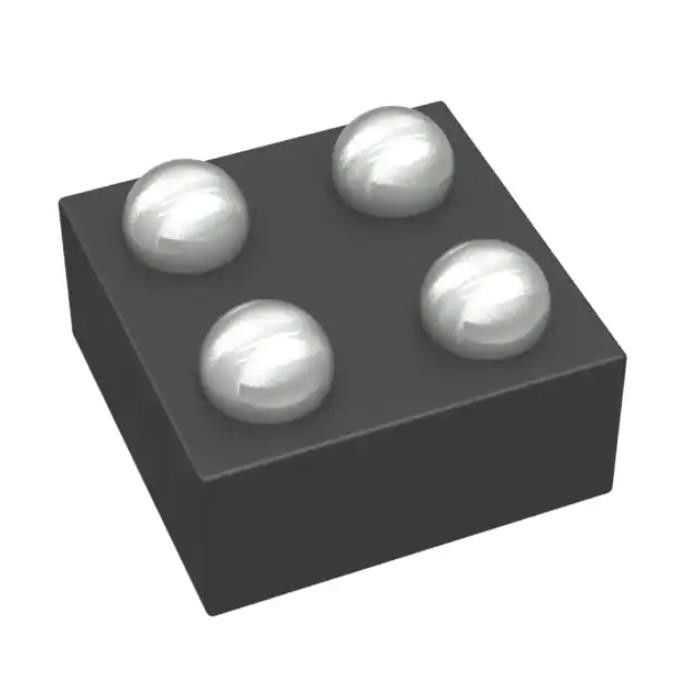

| Package / Case | 4-BGA, DSBGA |
| Supplier Device Package | 4-DSBGA (0.6x0.6) |
Features of TPS7A2033PYCJR
• Low output voltage noise: 7 μVRMS
– No noise-bypass capacitor required
• High PSRR: 95 dB at 1 kHz
• Very low IQ: 6.5 μA
• Input voltage range: 1.6 V to 6.0 V
• Output voltage range: 0.8 V to 5.5 V
• Output voltage tolerance: ±1.5% (max)
• Very low dropout:
– 140 mV (max) at 300 mA (VOUT = 3.3 V)
– 145 mV (max) at 300 mA (VOUT = 3.3 V, DBV)
• Low inrush current
• Smart enable pulldown
• Stable with 1-µF minimum ceramic output capacitor
• Packages:
– 1-mm × 1-mm X2SON
– 0.616-mm × 0.616-mm DSBGA
– 2.90-mm × 1.60-mm SOT23-5
Applications of TPS7A2033PYCJR
• Smartphones and tablets
• IP network cameras
• Portable medical equipment
• Smart meters and field transmitters
• Motor drives
• Wearables
Environmental & Export Classifications of TPS7A2033PYCJR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | Not applicable |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
