TPS79850QDGNRQ1 Power Switch Ics Ic Reg Linear 5v 50ma 8msop Pwr
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS79850QDGNRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Output Configuration: | Active | Output Configuration: | Positive |
|---|---|---|---|
| Output Type: | Fixed | Number Of Regulators: | 1 |
| Voltage - Input (Max): | 50V | Voltage - Output (Min/Fixed): | 5V |
| Voltage Dropout (Max): | 0.55V @ 50mA | Current - Output: | 50mA |
Product Description
TPS79850QDGNRQ1 Power Switch Ics Ic Reg Linear 5v 50ma 8msop Pwr
Linear Voltage Regulator IC Positive Fixed 1 Output 50mA 8-HVSSOP
Specifications of TPS79850QDGNRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 50V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 50mA |
| Current - Output | 50mA |
| Current - Quiescent (Iq) | 80 µA |
| Current - Supply (Max) | 3.3 mA |
| PSRR | 65dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

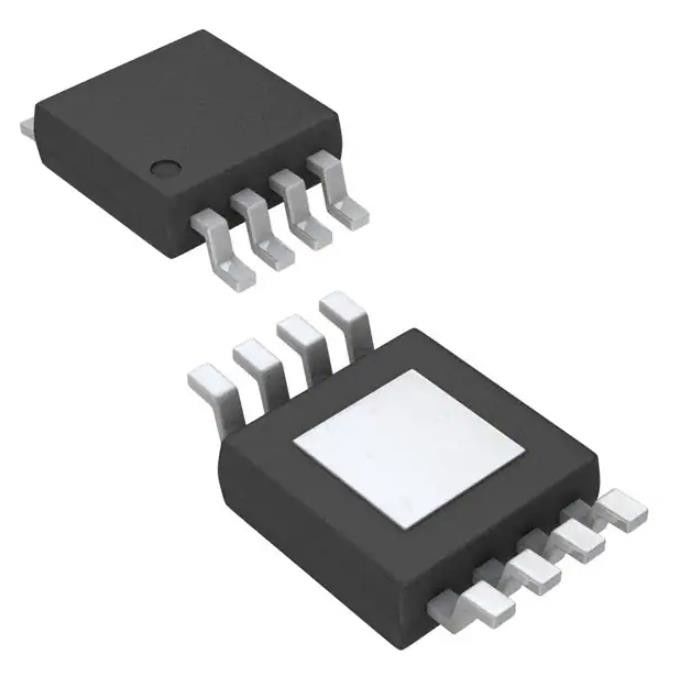

| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad |
| Supplier Device Package | 8-HVSSOP |
| Base Product Number | TPS79850 |
Features of TPS79850QDGNRQ1
• Qualified for Automotive Applications
• Wide Input Voltage Range: 3 V to 50 V
• Low Quiescent Current: 40 μA (Typical)
• Low Dropout Voltage: 300 mV (Typical)
• Output Current: 50 mA
• No Input Protection Diodes Needed
• Adjustable Output From 1.275 V to 28 V
• 1-μA Quiescent Current in Shutdown
• Stable With 1-μF Output Capacitor
• Stable With Aluminum, Tantalum, or CeramicCapacitors
• Reverse Input-Battery Protection
• Reverse Output Current Flow Protection
• Thermal Limiting
• Available in an 8-Pin MSOP-PowerPAD ICPackage
Applications of TPS79850QDGNRQ1
• Low-Current, High-Voltage Regulators
• Regulators for Battery-Powered Systems
• Telecom
• Automotives
Environmental & Export Classifications of TPS79850QDGNRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
