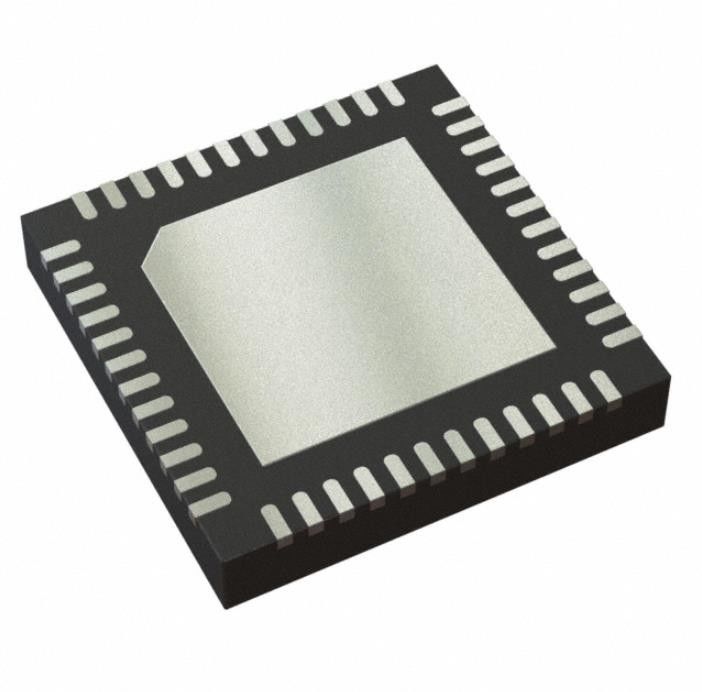

TPS65217CRSLR Power Switch Ics Ic Pmic Batt Pwr Syst 48vqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS65217CRSLR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Supply Operating Temperature: | 2.75V ~ 5.8V | Operating Temperature: | -40°C ~ 105°C |
|---|---|---|---|
| Mounting Type: | Surface Mount | Package / Case: | 48-VFQFN Exposed Pad |
| Supplier Device Package: | 48-VQFN (6x6) | Base Product Number: | TPS65217 |
| Mfr: | Texas Instruments | Product Status: | Active |
Product Description
TPS65217CRSLR Power Switch Ics Ic Pmic Batt Pwr Syst 48vqfn
Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply PMIC 48-VQFN (6x6)
Specifications of TPS65217CRSLR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Management - Specialized | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Applications | Battery Management, Display (LED Drivers), Handheld/Mobile Devices, Power Supply |
| Current - Supply | - |
| Voltage - Supply | 2.75V ~ 5.8V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (6x6) |
| Base Product Number | TPS65217 |
Features of TPS65217CRSLR
• Charger and Power Path
– 2-A Output Current on Power Path
– Linear Charger; 700-mA Maximum Charge Current
– 20-V Tolerant USB and AC Inputs
– Thermal Regulation, Safety Timers
– Temperature Sense Input
• Step-Down Converter (DCDC1, DCDC2,DCDC3)
– Three Step-Down Converter With Integrated Switching FETs
– 2.25-MHz Fixed Frequency Operation
– Power-Save Mode at Light-Load Current
– Output Voltage Accuracy in PWM Mode 2%
– 100% Duty Cycle for Lowest Dropout
– Typical 15-µA Quiescent per Converter
– Passive Discharge to Ground When Disabled
• LDO Regulators (LDO1, LDO2)
– Two Adjustable LDOs
– LDO2 can be Configured to Track DCDC3
– Typical 15-µA Quiescent Current
• Load Switches (LDO3, LDO4)
– Two Independent Load Switches That Can Be
Configured as LDOs
• WLED Driver
– Internally Generated PWM for Dimming Control
– 38-V Open-LED Protection
– Supports Two Strings of up to 10 LEDs at 25 mA Each
– Internal Low-Side Current Sinks
• Protection
– Undervoltage Lockout and Battery Fault Comparator
– Always-On Push-Button Monitor
– Hardware Reset Pin
– Password Protected I2C Registers
• Interface
– I2C Interface (Address 0x24)
– Password-Protected I2C Registers
Applications of TPS65217CRSLR
• Sitara™ AM335x Processor Power
• Portable Navigation Systems
• Tablet Computing
• 5-V Industrial Equipment
Environmental & Export Classifications of TPS65217CRSLR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
