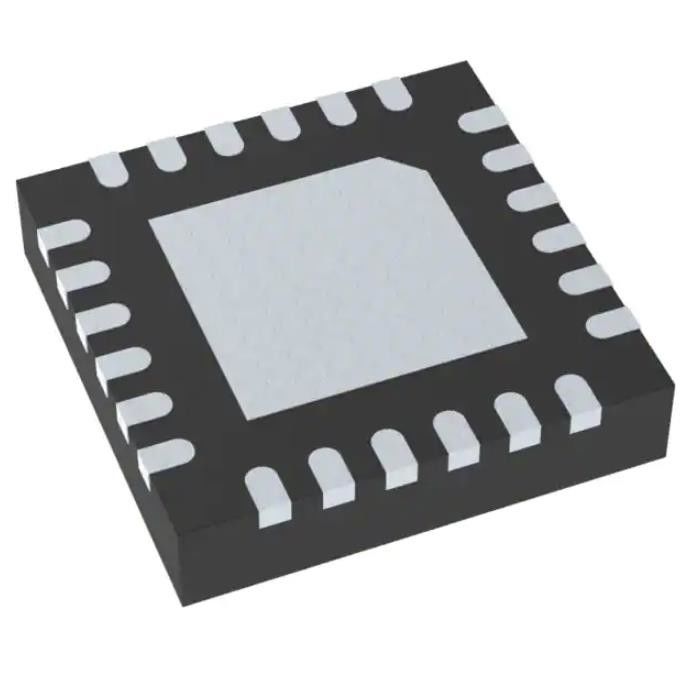

TPS65100RGERG Power Switch Ics Ic Reg Ctrlr Tft 4out 24vqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS65100RGERG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status Applications: | Active | Applications: | Controller, TFT LCD |
|---|---|---|---|
| Voltage - Input: | 2.7V ~ 5.8V | Number Of Outputs: | 4 |
| Voltage - Output: | Multiple | Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount | Package / Case: | 24-VFQFN Exposed Pad |
Product Description
TPS65100RGERG Power Switch Ics Ic Reg Ctrlr Tft 4out 24vqfn
- Controller, TFT LCD Voltage Regulator IC 4 Output 24-VQFN (4x4)
Specifications of TPS65100RGERG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Applications | Controller, TFT LCD |
| Voltage - Input | 2.7V ~ 5.8V |
| Number of Outputs | 4 |
| Voltage - Output | Multiple |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (4x4) |
| Base Product Number | TPS65100 |
Features of TPS65100RGERG
• 2.7-V to 5.8-V Input Voltage Range
• 1.6-MHz Fixed Switching Frequency
• 3 Independent Adjustable Outputs
• Boost Converter Output Voltage VO1 of up to 15 VWith 1% Output Voltage Accuracy
• Negative Regulated Charge Pump VO2
• Positive Charge Pump VO3
• Integrated VCOM Buffer
• Virtual Synchronous Converter Technology inBoost Converter
• Auxiliary 3.3-V Linear Regulator Controller
• Internal Soft Start
• Internal Power-On Sequencing
• Fault Detection of all Outputs (TPS65100/05)
• No Fault Detection (TPS65101)
• Thermal Shutdown
• Available in TSSOP-24 and VQFN-24PowerPAD™ Packages
Applications of TPS65100RGERG
• TFT LCD Displays for Notebooks
• TFT LCD Displays for Monitors
• Portable DVD Players
• Tablet PCs
• Car Navigation Systems
• Industrial Displays
Environmental & Export Classifications of TPS65100RGERG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
