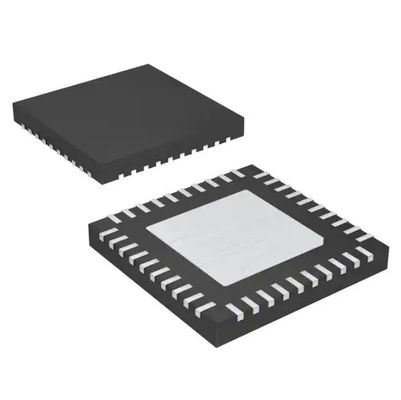

TPS650231RSBR Power Switch Ics Ic Bat Pwr Mgmt Li-Ion 1c 40wqfn
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS650231RSBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Product Status: | Active |
|---|---|---|---|
| Function: | Power Management | Battery Chemistry: | Lithium Ion/Polymer |
| Number Of Cells: | 1 | Fault Protection: | Over Temperature |
| Interface: | I²C | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
TPS650231RSBR Power Switch Ics Ic Bat Pwr Mgmt Li-Ion 1c 40wqfn
Battery Power Management IC Lithium Ion/Polymer 40-WQFN (5x5)
Specifications of TPS650231RSBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Battery Management | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Power Management |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Temperature |
| Interface | I²C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-WQFN (5x5) |
| Base Product Number | TPS650231 |
Features of TPS650231RSBR
• 1.7-A, 90% Efficient Step-Down Converter for Processor Core (VDCDC1)
• 1.2-A, Up to 95% Efficient Step-Down Converter for System Voltage (VDCDC2)
• 0.8-A, 92% Efficient Step-Down Converter for Memory Voltage (VDCDC3)
• 30-mA LDO and Switch for Real-Time Clock (VRTC)
• 2 × 200-mA General-Purpose LDO
• Dynamic Voltage Management for Processor Core
• Preselectable LDO Voltage Using Two Digital Input Pins
• Externally Adjustable Reset Delay Time
• Battery Backup Functionality
• Separate Enable Pins for Inductive Converters
• I 2C™-Compatible Serial Interface
• 85-μA Quiescent Current
• Low-Ripple PFM Mode
• Thermal Shutdown Protection
• Available in 40-Pin, 5-mm × 5-mm VQFN (RSB) or 49-Ball, 3-mm × 3-mm DSBGA (YFF) Package
Applications of TPS650231RSBR
• Smart Phones
• Netbooks and MIDs
• Portable Media Players
Environmental & Export Classifications of TPS650231RSBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
